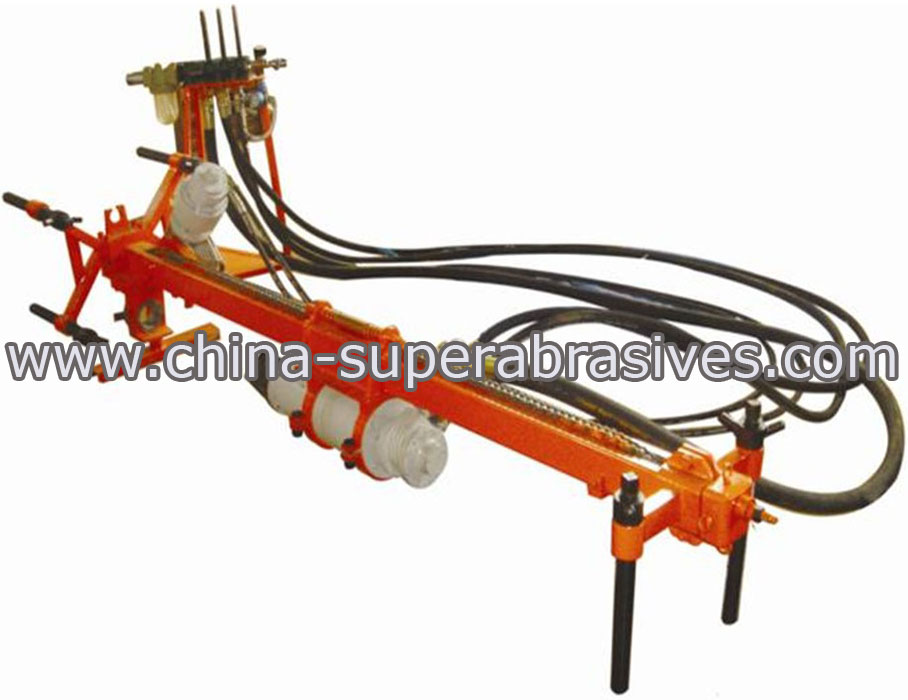

driller
We manufacture driller such as horizontal driller,cylinder driller,electric driller,pneumatic driller.

DRILLER FEATURES:
1) developed for granite,marble mine block quarrying,with high stability to keep the drilled hole straight.
2) The driller can drill horizontal,vertical,or declining holes in any angle in different hole diameter and depth.
3) Driller with 20 pcs drill rods and one drill bit, complete set gross weight is 800kg.

Technical parameters of driller
Drilling depth (m) 30
Drilling diameter (mm) 90~100
Drilling speed (m/h) 5~8
Working air pressure (M Pa) 0.5~0.7
Air consumption (/minute) 10~13
Stroke (m) 1.2
Lifting capability (kg) 1300
Main drillrig weight (kg) 150
Driller
cylinder driller, horizontal driller, electric driller, pneumatic driller
