Electroplated diamond belt and CBN sandpaper

We manufacture and produce electroplated diamond belt and CBN belt / sandpaper, our diamond and CBN belts is high grinding and polishing efficiency, long belt sheet life and can achieve good surface roughness properties, also environmentally friendly. Diamond is harder than CBN abrasive, but thermal stability is lower. CBN belts can process ferrous metal and alloy materials. This supplied new process way to processing toughness, tenacity and some difficult-to-machine materials. With viewing the diamond is more suitable for processing high toughness and brittleness materials, the diamond and CBN can mutually complementary exactly.

Used for edge deburring,scratch removal,surface refining and polishing,spot repari,nib removal,flat lapping machines,hand applications,rubber&polyurethane rolls,iron&steel rolls,hard coated rolls(plasma,chrome oxide and carbide coating,glass belt arrissing,glass defect repair, connector polishing ,cam&crank superfinishing) ,they can be used for plastics,composite material,paints&laquers,solid surface composite material,DVD/CP repair , hard matals, metallurgical lapping, roll superfinishing,glass polishing,fibre optics,AOEM/Powertrain components. Size grade can be :N10,N20.N40,N74,N125,N250

Compared with conventional abrasive grinding tools, our electroplated diamond belt and CBN belt / sandpaper feature advantages as belows :
1). Various of toughness and tenacity materials can be pressed by CBN grinder because it is has better toughness than normal grinder.
2). CBN tools has excellent grind ability, it not only can process difficult materials, improve productivity ,but also can strictly control the shape and exactly sizes. mean while the grinding ability have been improved ,the completely surface has been improved obviously after grinding .thereby it increased its grinding ability ,extent its life ,add his reliable.
3). The characteristic of CBN is durable, long life and sharp, good beneficial will be respond if you use it reasonable.
4). The size and shape of CBN grinding changed slowly while in processing .It widely accepted in CNC numerical control machining to process high accuracy products.
5). It can maintenance sharp grinding force for long time ,therefore the cutting force is low, its good to improve the precision and fishing of parts
6). The temperature of grinding is low ,increased its surface quality, avoid crack and burn.
7). Avoiding large harmful dust while in machining process.

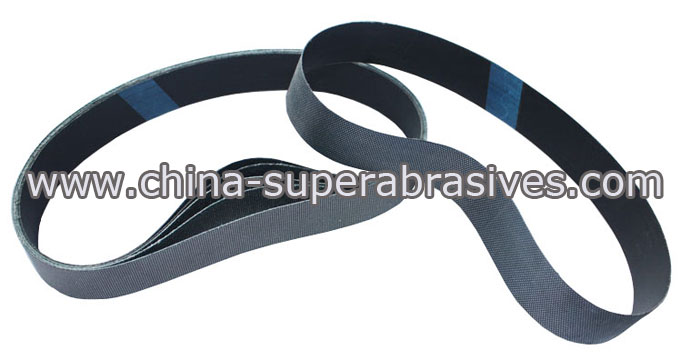

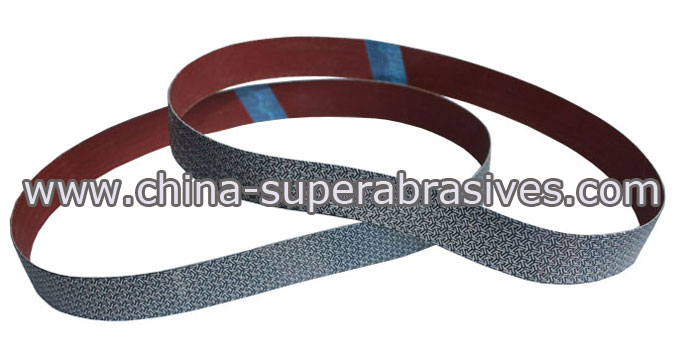

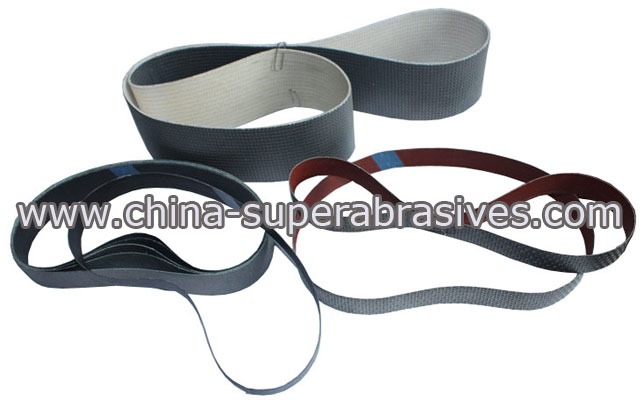

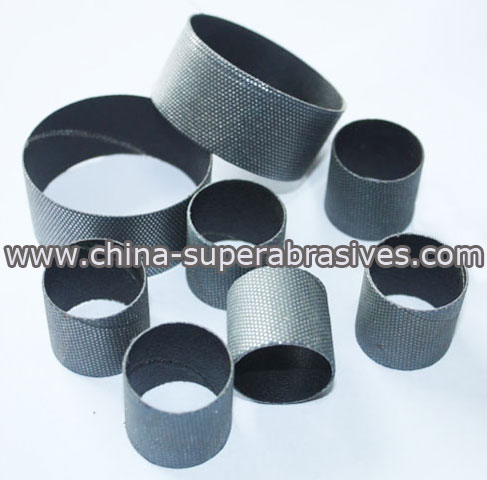

Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper
Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper
Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper
Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper
Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper
Electroplated diamond and CBN sandpaper belt
Electroplated diamond belt and CBN sandpaper

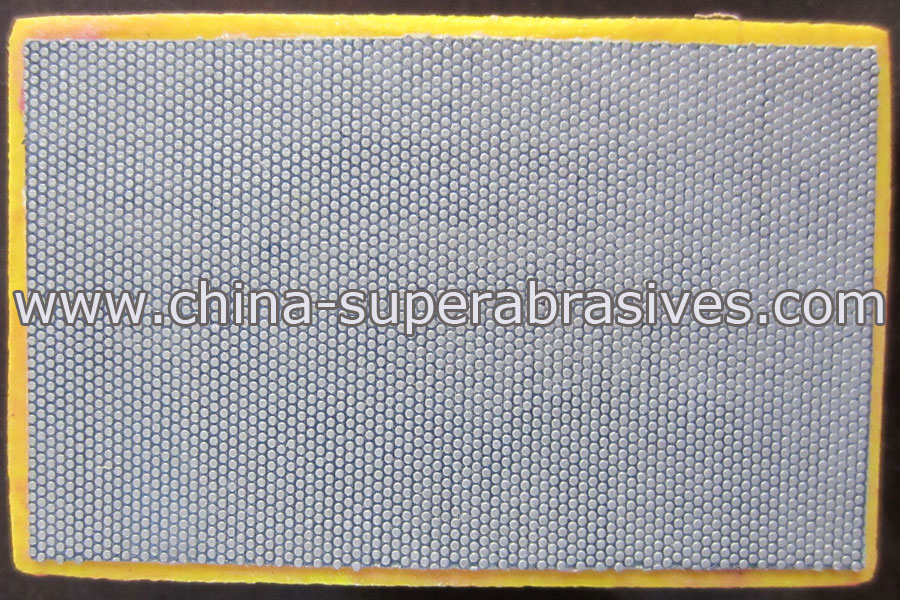

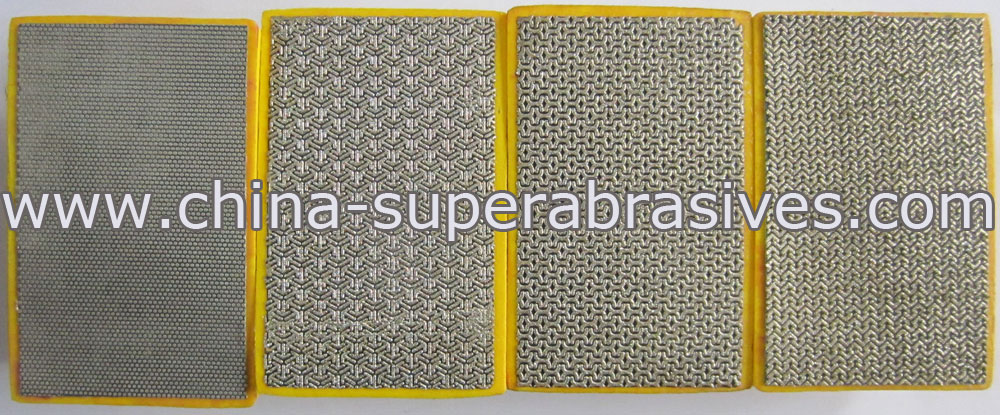

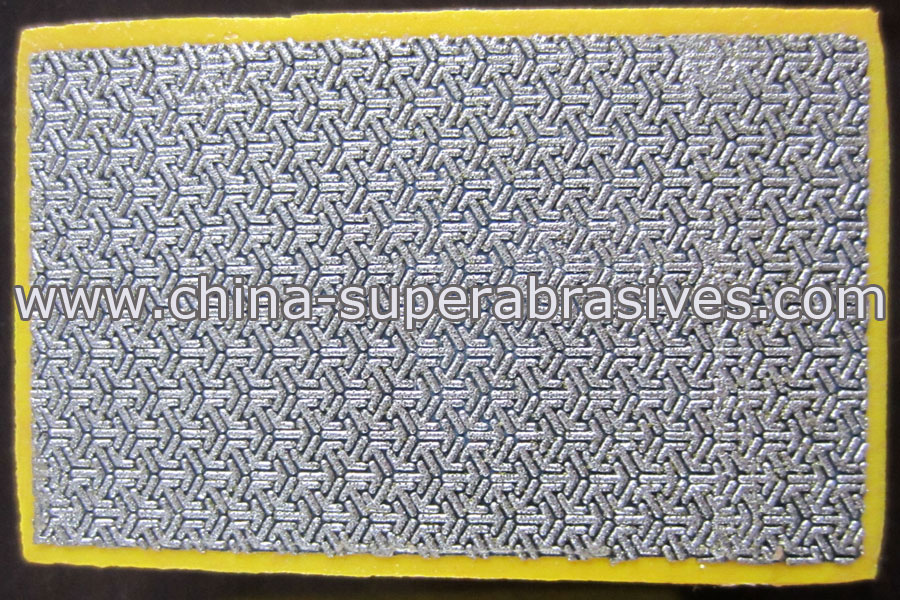

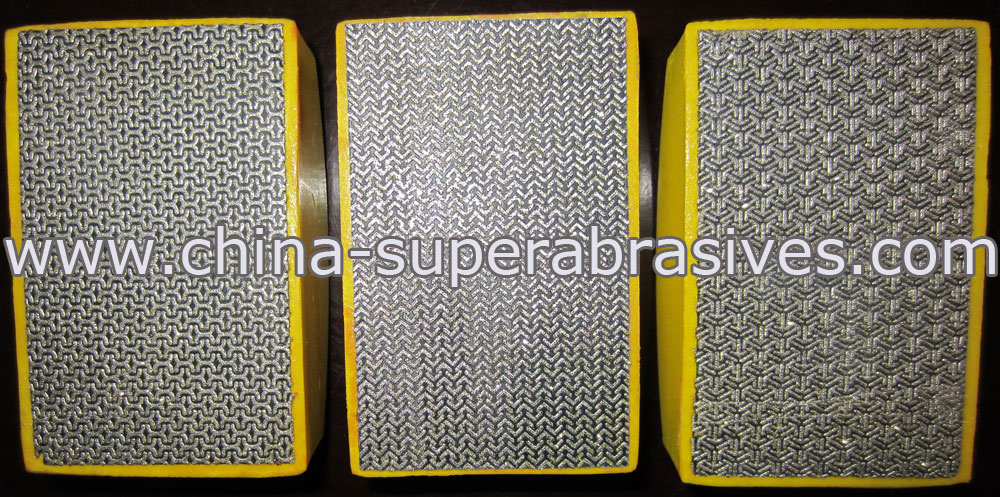

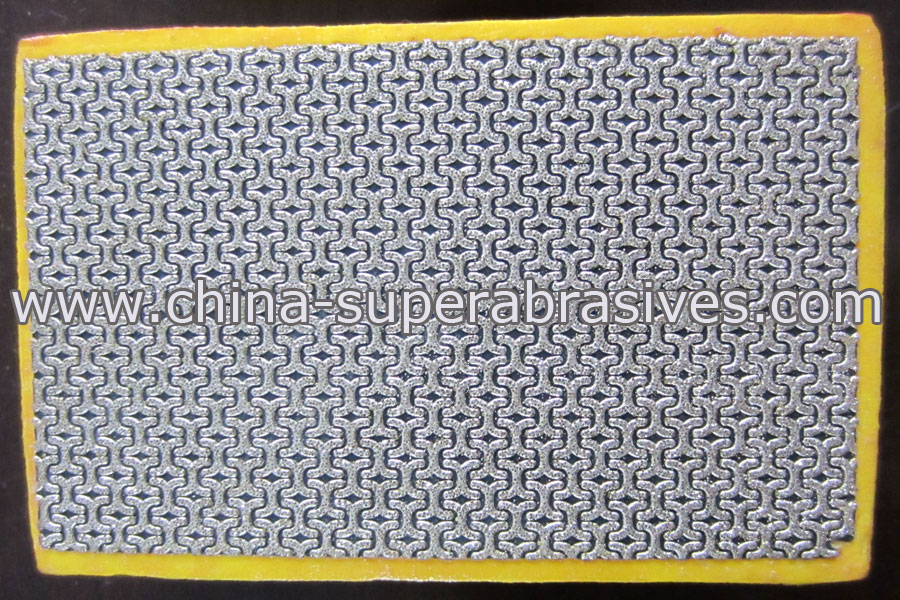

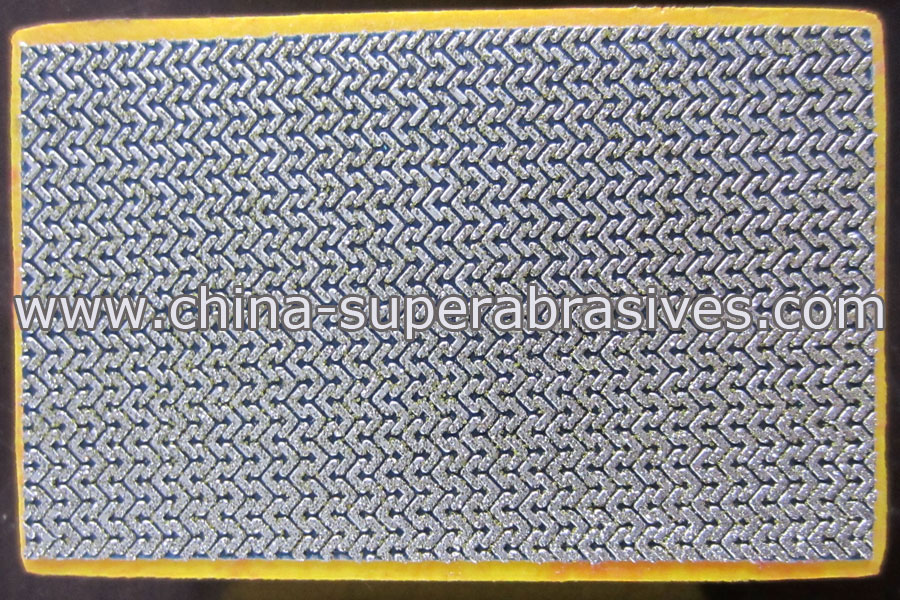

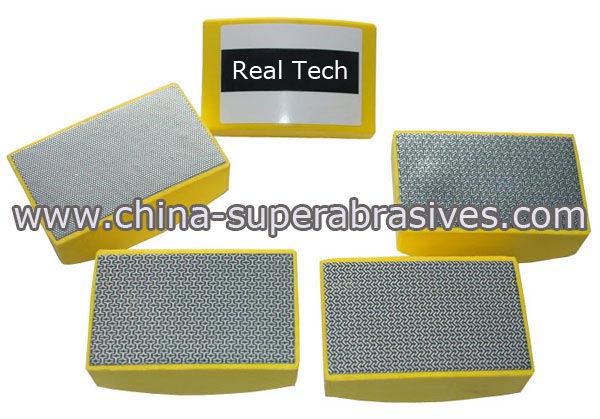

Electroplated diamond hand pads
Electroplated diamond hand pads
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad
Electroplated diamond hand pad

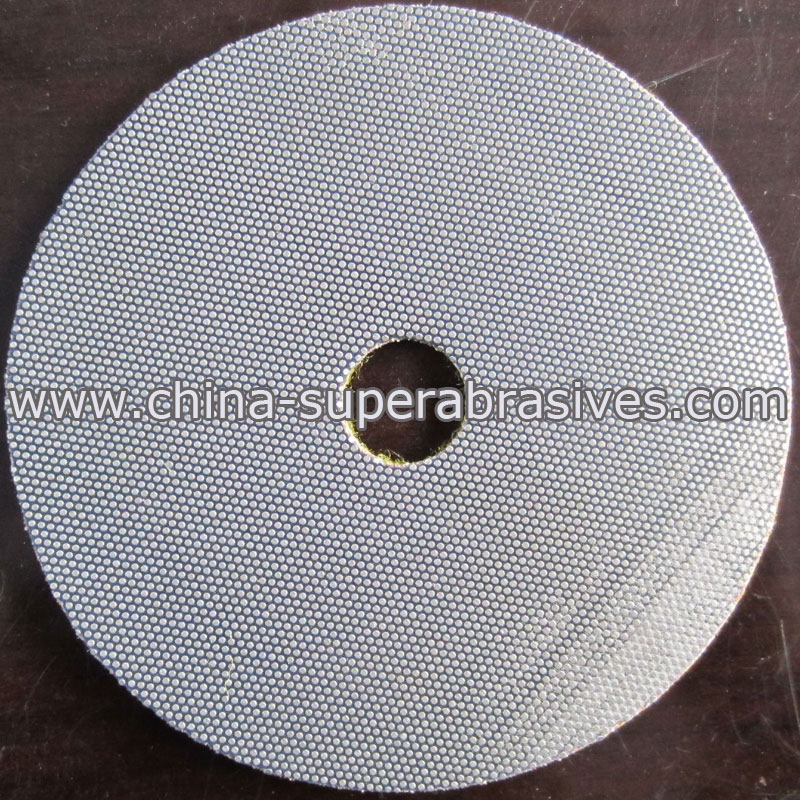

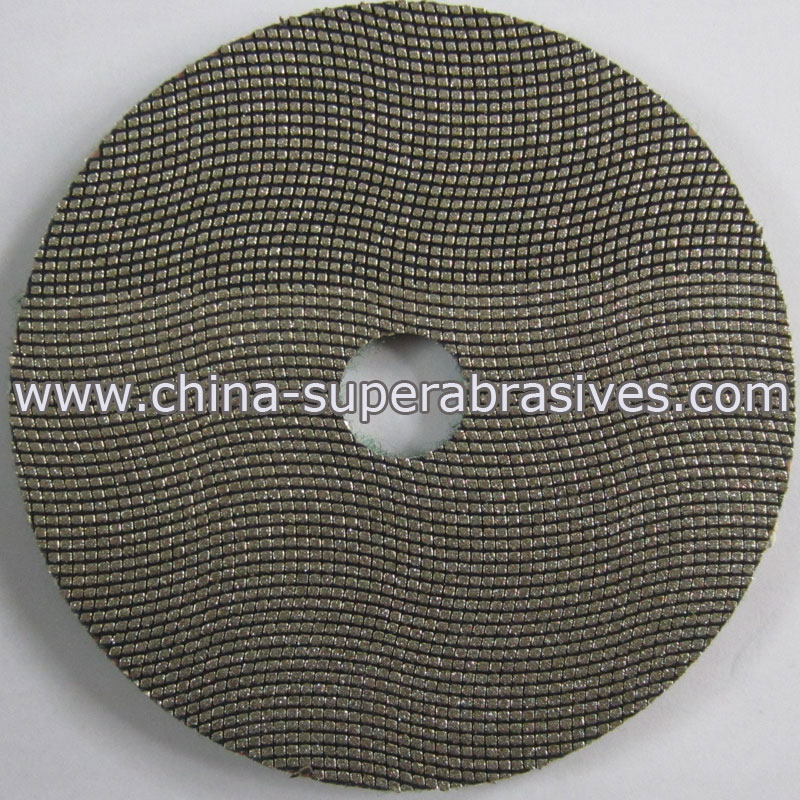

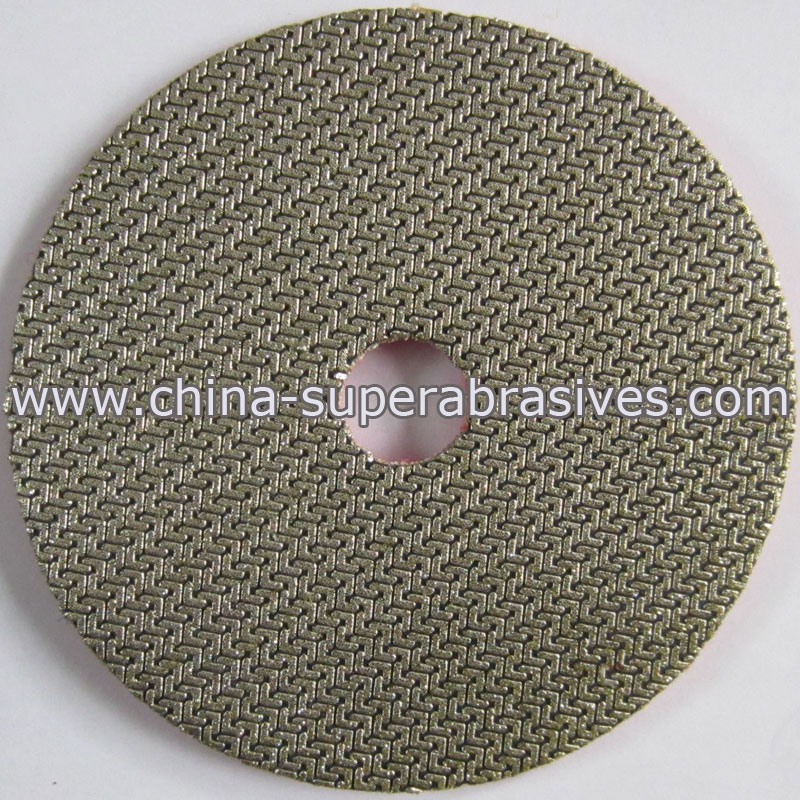

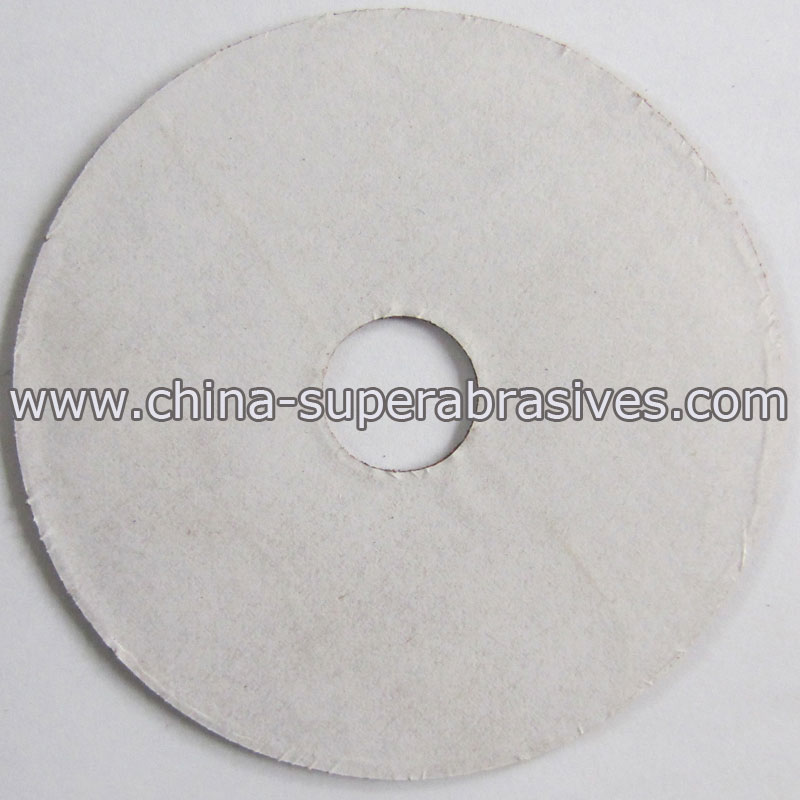

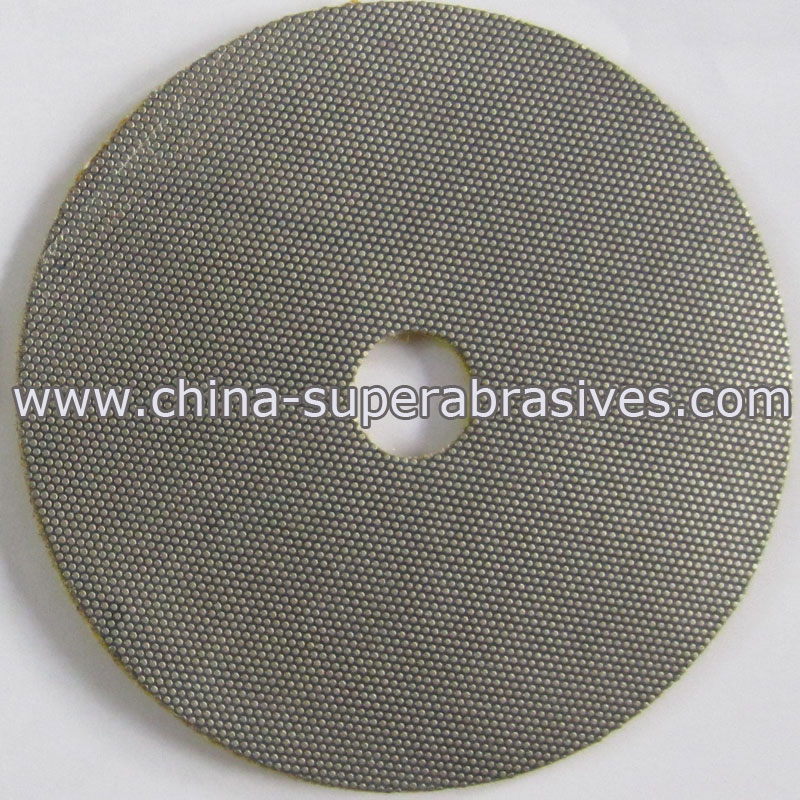

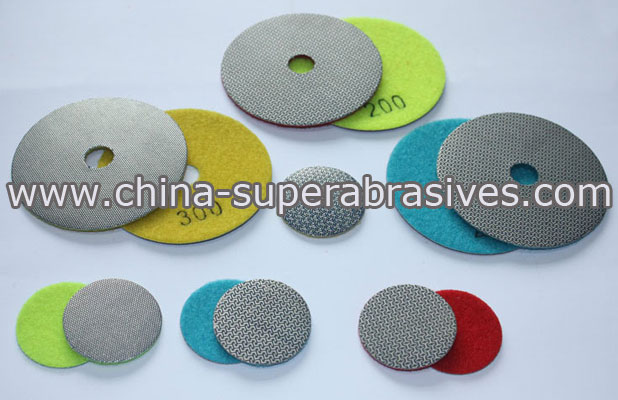

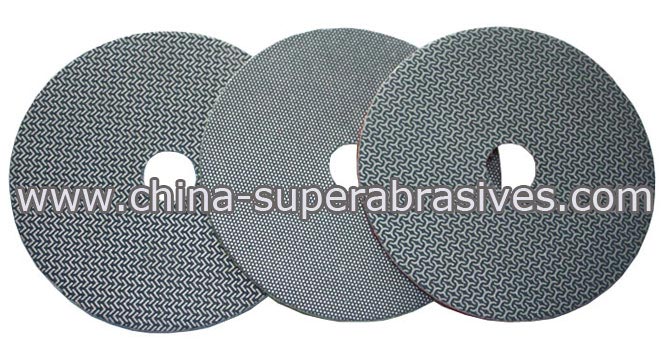

Electroplated diamond grinding pads
Electroplated diamond grinding pads
Electroplated diamond grinding pads
Electroplated diamond grinding pads
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad

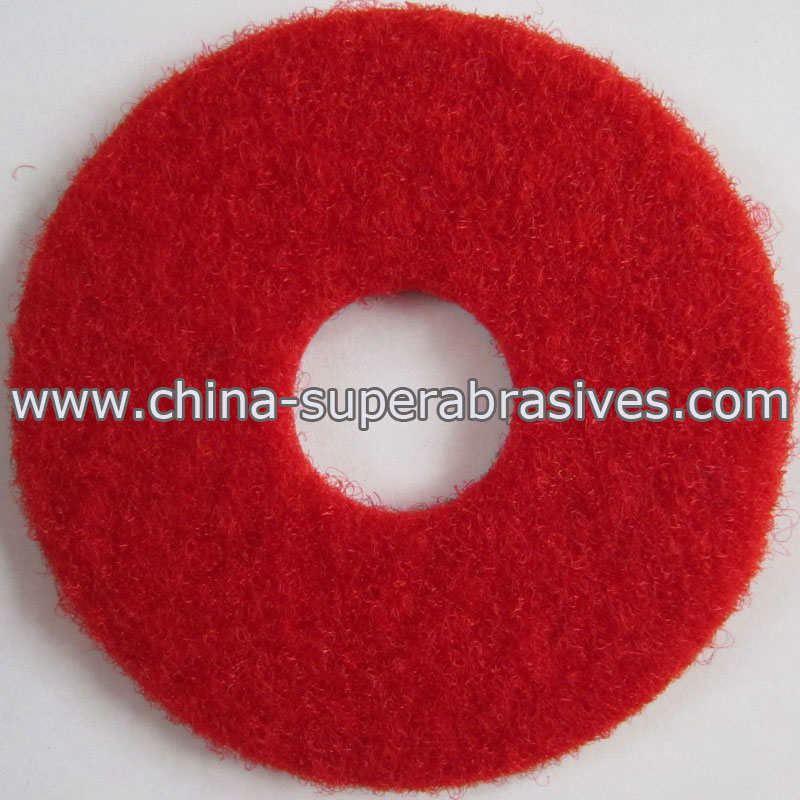

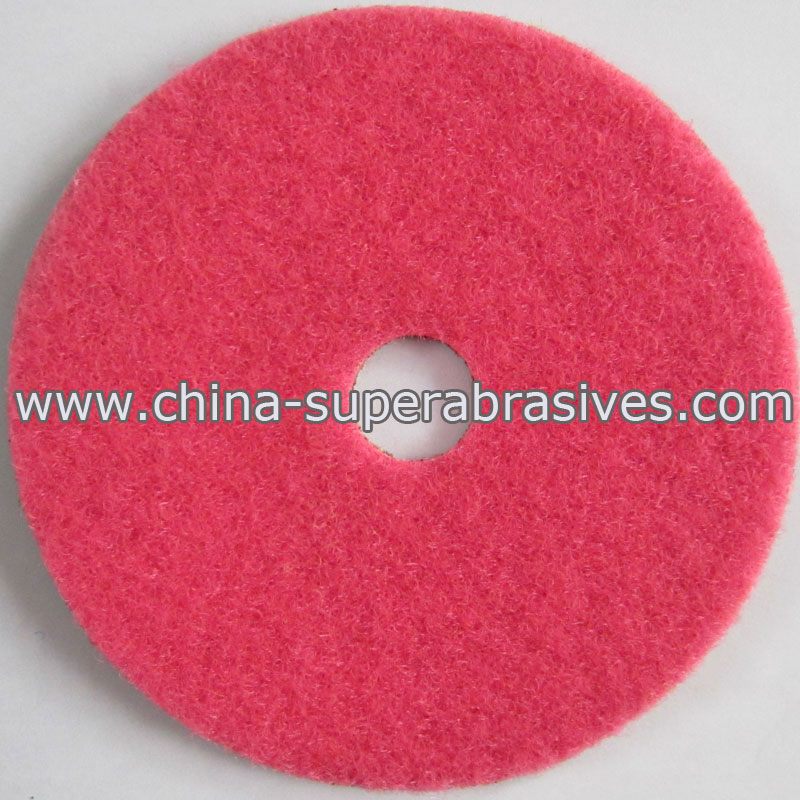

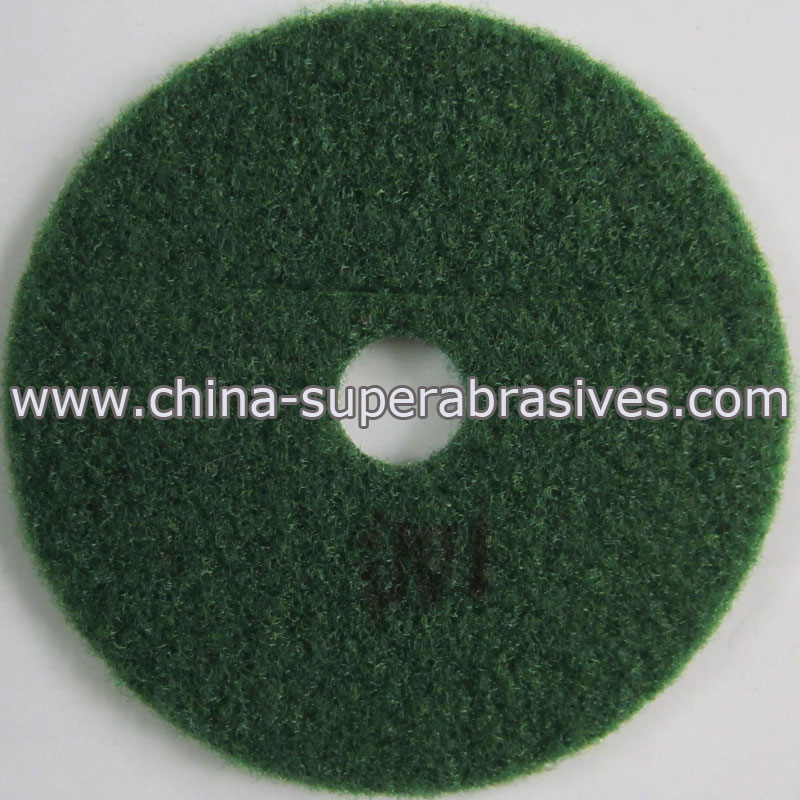

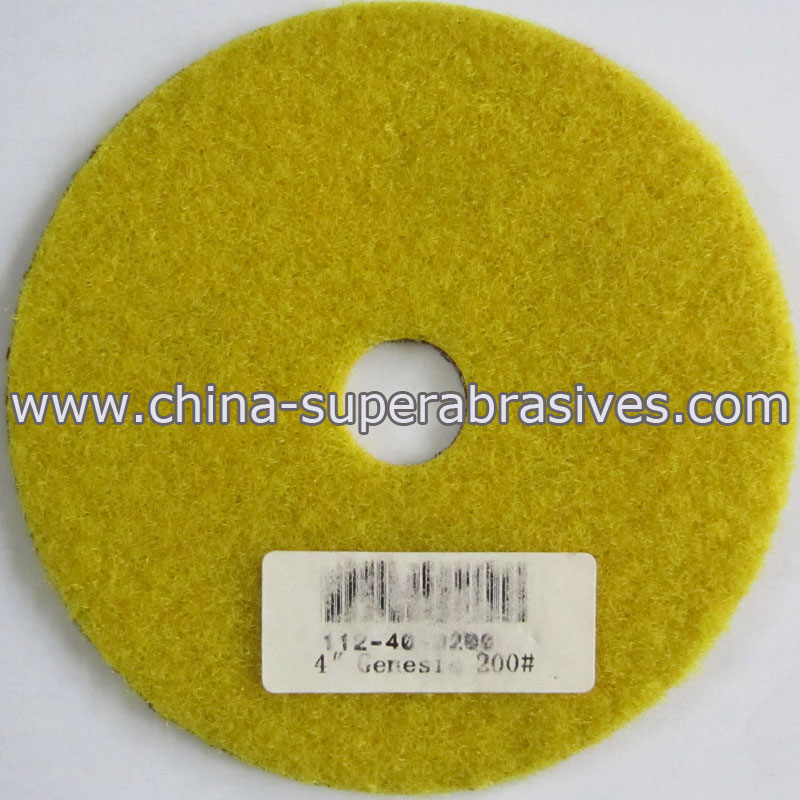

Spongy pad
Spongy pad
Spongy pad
Spongy pad
Spongy pad
Spongy pad
Spongy pad
Spongy pad

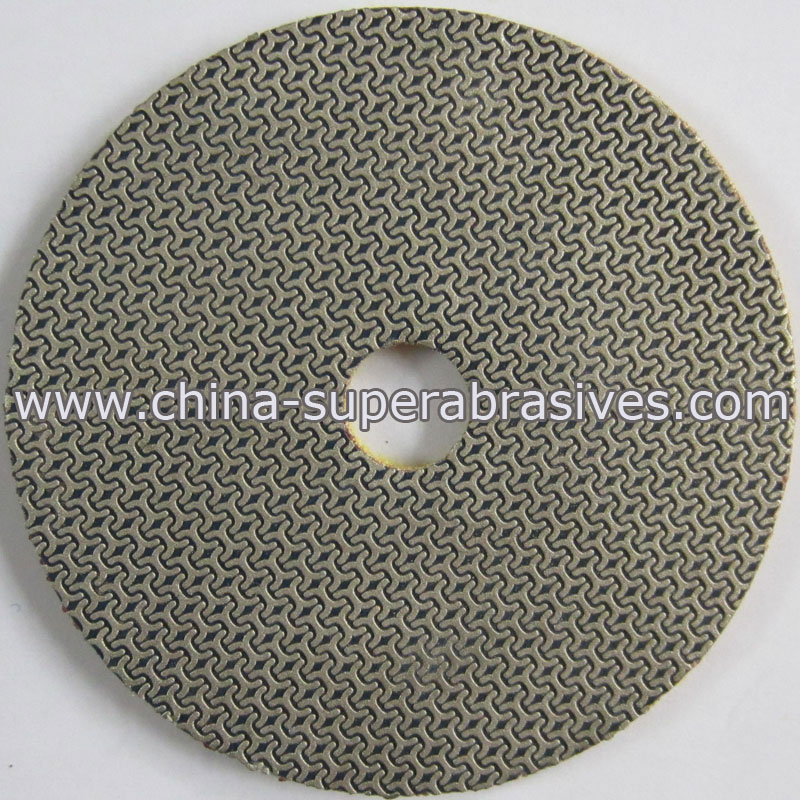

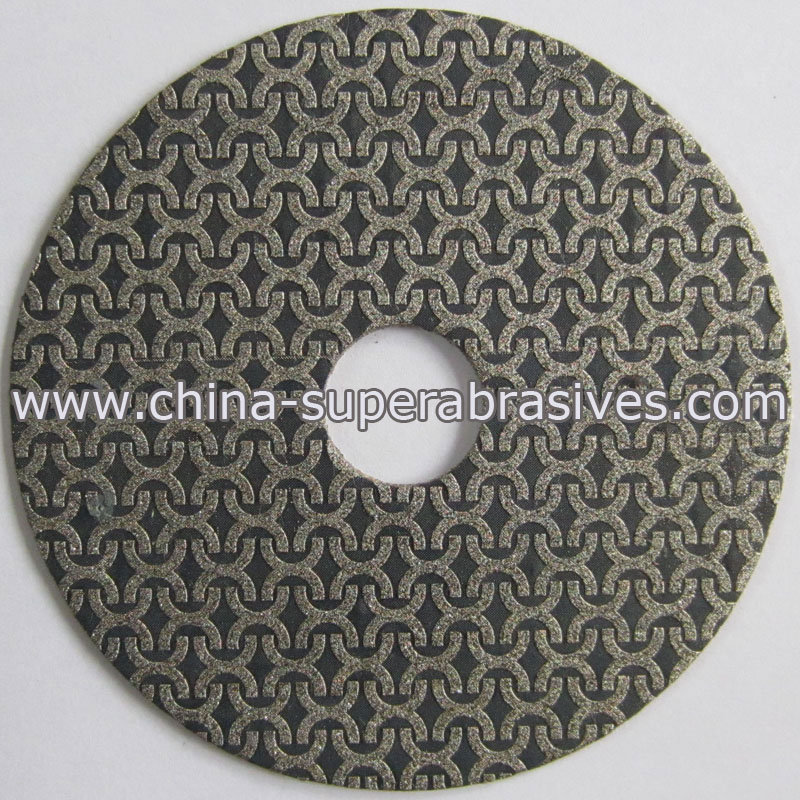

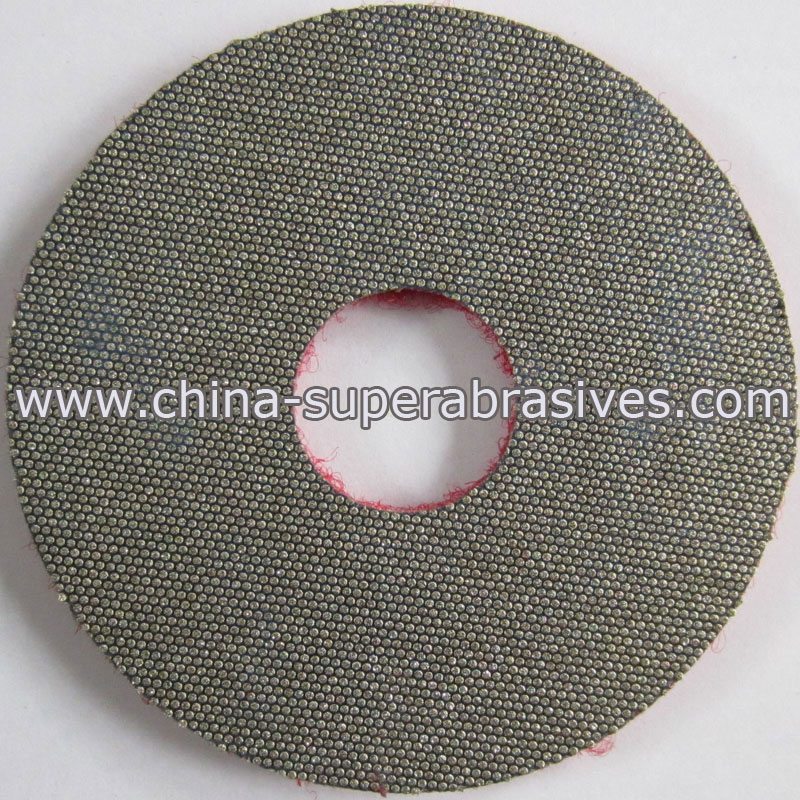

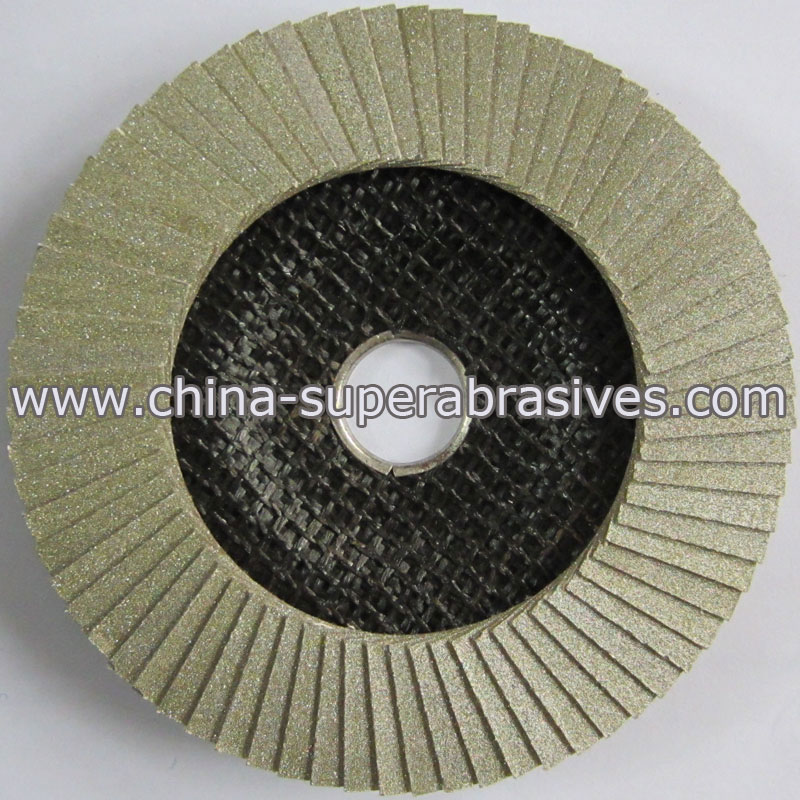

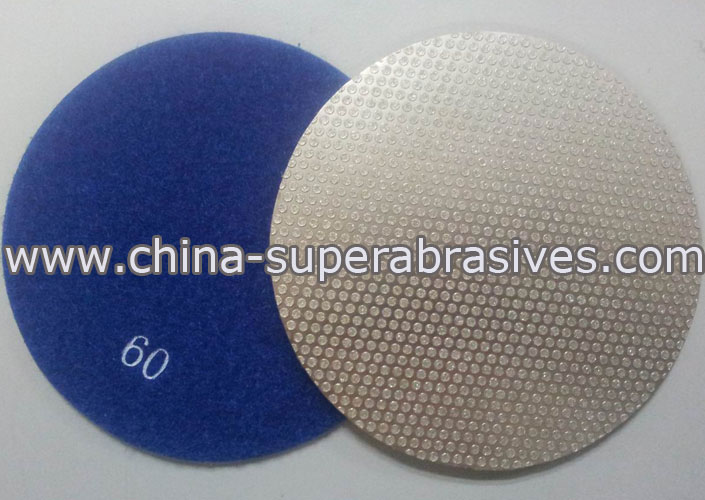

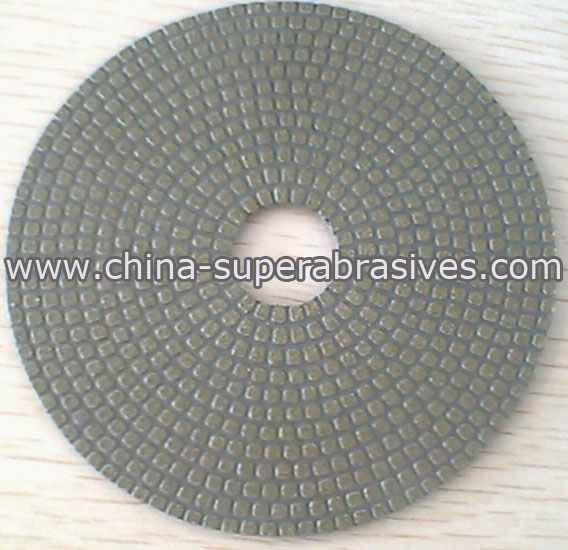

Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad
Electroplated diamond grinding pad Electroplated diamond grinding pad Electroplated diamond grinding pad Electroplated diamond grinding pad Electroplated diamond grinding pad Electroplated diamond grinding pad
Electroplated diamond grinding pad
Grits option for different grinding applications for our diamond and CBN grinding / polishing belts
Grinding process
Grit Sizes Availability
Rough grinding 80# to 120#
Semi-grinding 120# to 180#
Fine grinding 180# to W40
Finishing grinding W40 to W1

Effective application of the CBN grinding belts / Paper:
1). The dressing and rough grinding and cutting of high speed steel (which contain W ,W and Mo, and others),especially for Vanadium alloy steel, Cobalt alloy steel and other special HSS.
2). The precision/fine grinding and finishing grinding for the precision parts made by refractory steel, stainless steel and high toughness (>HRC55) alloy steel , since the conventional abrasive tool can’t obtain high grinding accuracy.
3). CBN grinder is an ideal tool for titanium alloy grinding applications,The grinding features is low grinding force ,low grinding temperature ,wear small .
4). Fine grinding and final grinding for large scale precision workpieces (machine tool guide ) caused relativity large thermal deformation ,then cant got high precision if using normal grinder.
5). Large quantities workpieces's (parts of meter and miniature bearing) fine grinding and final grinding at full motive and self-full motive machine tool .

We supply diamond mylars polishing film, our diamond mylars adopt advanced coating technology to evenly apply micron or nano abrasive particles with macromolecular medium on high-intensity films. Precisely cut as per specific purposes.
diamond mylar polishing film diamond mylars polishing film features
1. Evenly-sprayed particles on coated surfaces;
2. Advantages of both fixed and dissociated polishing modes with the characteristics of high removal ratio & surface effects;
3. Good intensity & flexility, suitable for polishing on different facets;
4. Suitable for polishing with dry, water or oil medium;
5. Positioned lapping & polishing to save abrasive material.

diamond mylars polishing film applications:
Optical fibers and connectors;
flat-panel display;
Optical lens, crystals, LED;
Motor shafts and steering devices;
Metal rollers & shafts;
Magnetic head, HDD;
Semiconducting materials (gallium arsenide, indium phosphide, etc.)

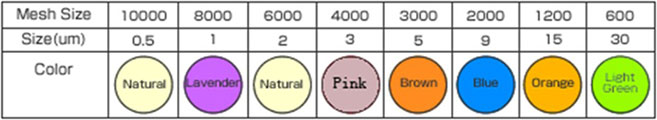

diamond mylar polishing film specifications
Width

1.2mm, 1.6mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 3.8mm, 5.0mm, 12.6mm

Length

45m (150 feet), 100m, 183m (600 feet), 200m

Round

Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm (8inch)

Square

114mm*114mm, 152mm*152mm(6inch), 228mm*228mm (9inch)
