Pneumatic driller
We manufacture driller such as horizontal driller,cylinder driller,electric driller,pneumatic driller.

PNEUMATIC DRILLER FEATURES:
1)The driller can drill horizontal, vertical, or declining holes in any angle.
2)A separated operation board is applied, which is equipped with pressure meter, relief valve, filter, lubricator, to insure high reliability.
3)Rotation device and feeding movement are driven by air motor, and the feeding speed can be regulated according to the stone's hardness.

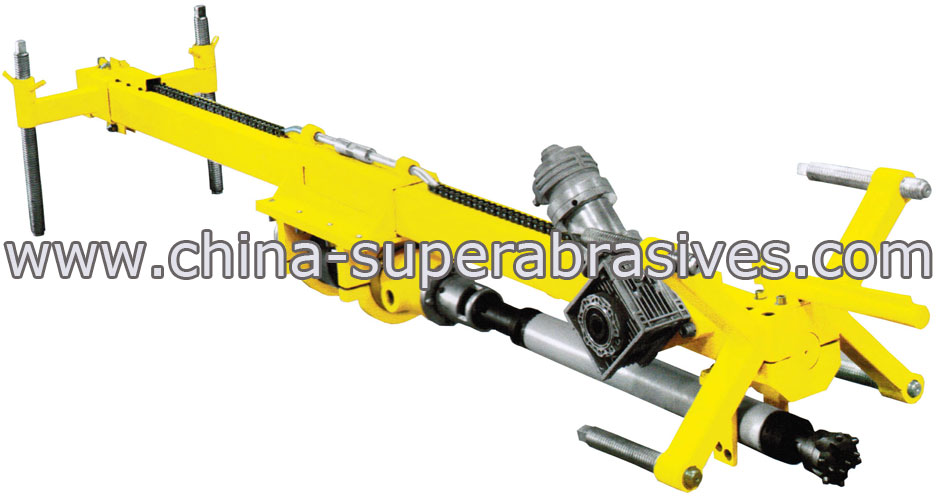

pneumatic driller
Technical parameters of pneumatic driller
Drilling depth (m) 30
Drilling diameter (mm) 90
Drilling speed (m/h) 6~8
Minimum pressure (M Pa) 0.6
Air consumption (/minute) 9~12
Stroke (m) 1.1
Feeding device Air motor
Rotation device Air motor
Net Weight (kg) 350
Driller
cylinder driller, horizontal driller, electric driller, pneumatic driller
