POLISHING MACHINE


POLISHING MACHINE

The polishing machine is fit for polishing circular saw blade body and diamond circular saw blade.

  • Rotary worktable with stepless speed regulation.
  • Polishing by annular emery cloth.
  • Polished body with trace of concentric circles.
  • High efficiency and easy operation.

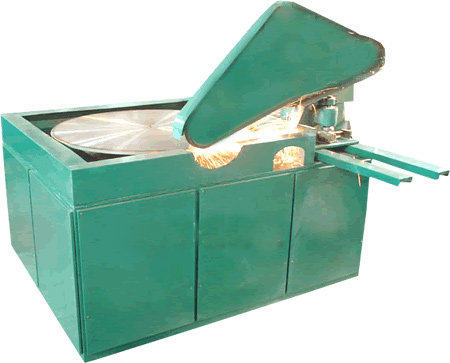

large image of polishing machine
POLISHING MACHINE TECHNICAL DATA
Model
PM600
PM1000
Power supply
220/380V,50/60Hz 3phases
Power Consumption (kw)
1.65
2.75
Range of saw diameter(mm)
Ø105~Ø600
Ø300~Ø1000
Rev of worktable(round/minute)
50~500
50~500
Size of emery cloth(mm)
40×1000
40×1000
Clamping method
Magnetic force
Magnetic force
Overall dimension(mm)
1600×1100×1400
2000×150×1400
Weight(kg)
Approx. 1200
Approx. 1500

         NOTE:
   1.We will reserve the right to modify any technical data of the machine.
   2.It is possible to make the machine according to customer's demands.
