HIGH FREQUENCY POWER

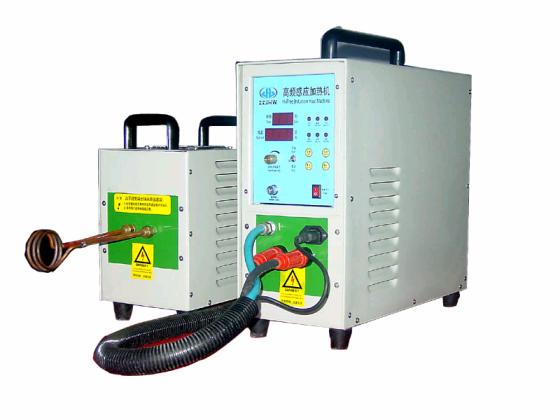

High Frequency Power





Our High Frequency Power is used for diamond saw blades and grinding wheels brazing and also for heat treatment.

1.High efficiency and small size.
2.No danger for high voltage and no preheating.
3.Displaying current in figures.
4.Automatically protecting and giving an alarm, when something is fault.
5.Optional controlling temperature type. The High Frequency Power is fit for brazing diamond saw blades and diamond grinding wheel and for heat treatment also
HIGH FREQUENCY POWDER MACHINE TECHNICAL DATA
Model
XGP15
XGP20
XGP25
Power supply
220V,50/60Hz monophase
Input power (kw)
15
20
25
Frequency(kHz)
30~100
30~100
30~80
Output current(A)
200~600
200~800
200~1000
Overall dimension(mm)
400×180×330
400×180×330
480×230×400
Weight(kg)
18
22
30

         NOTE:
   1.We will reserve the right to modify any technical data of the machine.
   2.It is possible to make the machine according to customer's demands.
