REGULATING TENSION MACHINE

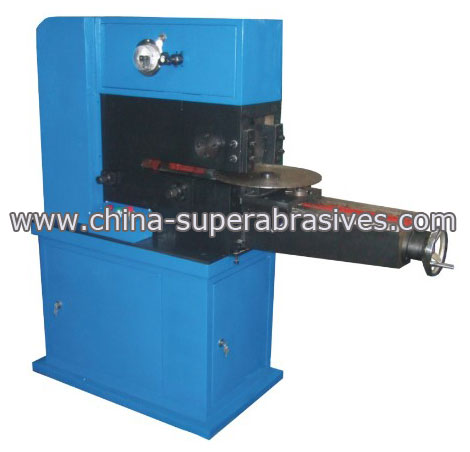

Diamond saw blade stress corrector
diamond saw blade stress corrector



The machine is designed for regulating and controlling the tensions of the circular diamond saw blank body or diamond circular saw blade. It's special dressing equipment for saw blade, it can make the irregular stress points which is produced during the process of production and usage evenly distributed again through reasonable rolling to adjust the tranform caused by the concentrating of stress. It can also increase the intensity of the saw surface and the toughness of the saw blade. After adjusted, the diamond saw is very suitable for using on compound saw mills.
  • Pressing hydraulically
  • Adjustable pressure.
  • Easy operation and small size..



TENSIONING MACHINE TECHNICAL DATA



Machine Type
JYX-3500
JYX-2200
JYX-1600
JYX-800
Range of tension(mm)
Φ800-Φ3500
Φ400-Φ2200
Φ400-Φ1600
Φ80-Φ800
Rated pressure(kN)
4-80
4-80
4-80
4-30
Rated oil pressure (MPa)
0.8-16
0.8-16
0.8-16
0.8-6
Tension rollers diameter(mm)
110
110
110
110
Tension roller speed(rpm)
25
25
25
25
Motor power (kw)
7.5
3+1.5
3+1.5
1.1+0.75
Overall dimension(mm)
5500×2500×1500
2200×600×2000
1600×600×1500
1600×520×1455
Weight(kg)
12000
3500
2200
850



         NOTE:
   1.We will reserve the right to modify any technical data ofthe machine.
   2.It is possible to make the machine according to customer's demands.
