OIL HYDRAULIC PRESS, OIL PRESS MACHINE

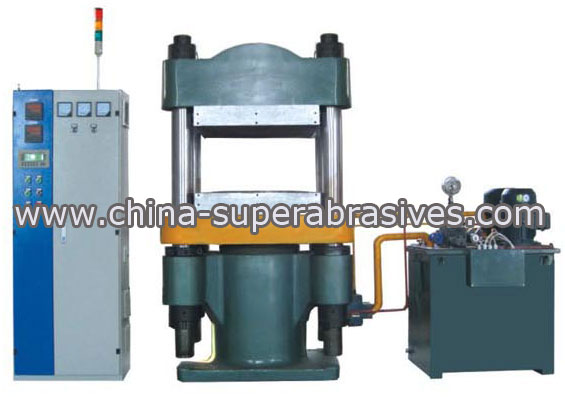

Oil hydraulic press

Oil hydraulic press integrates advance application experiences of institute of grinding wheel, and is equipped with fashionable oil pressure and control system. So it is more rational and more feasible for molding of grinding wheel. This machine uses four pillar structure, and has characteristics as little volume, strong pressure, low power consumption, convenient operation and trouble shooting. Equipped with proper accessorial element and heating up equipment it can make vitrified grinding wheel, resin bonded cutting grinding wheel, resin diamond grinding wheel and metal bonded diamond saw blade.

AUTO COLD PRESS MACHINE TECHNICAL DATA

Modle
100T
160T
200T
250T
315T
400T
500T
Nominal pressure(KN)
1000
1600
2000
2500
3150
4000
5000
Rated oil pressure(Mpa)
31.5
26
25
28
28
29
28
MAX stroke (mm)
250
350
350
250
400
600
600
Diameter of the piston(mm)
Φ200
Φ280
Φ320
Φ340
Φ380
Φ420
Φ480
Idle stroke(mm/s)
22
17
13
15~35
15~35
12~35
12~35
Worktable size(mm)
400*385
550*500
610*550
560*480
730*660
850*840
1000*900
Motor power(KW)
2.2
4.0
4.0
5.5
7.5
10
11
Weight(KG)
1000
2000
2800
3000
5000
7000
12000
Wheel diameter(mm) Ceramic, resin diamond wheel
<Φ200
<Φ300
<Φ350
<Φ400
<Φ500
<Φ600
<Φ900
Note
Auxiliaries and heating equipment

         NOTE:
   1.We will reserve the right to modify any technical data of the machine.
   2.It is possible to make the machine according to customer's demands.
