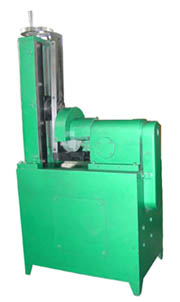

RADIUS GRINDING MACHINE


The radius grinding machine is designed for grinding the inner diameter of circular saw segments.

  • Multi-segments are installed at a time.
  • Segment carrying bed swings automatically.
  • Grinding wheel moves automatically along the axes



RADIUS GRINDING MACHINE TECHNICAL DATA
Model
RG1000
Power supply
220/380V,50/60Hz 3phases
Total power (kw)
1.1
Segment size(mm)
300~1000
Swing frequency(CPM)
70
Grinding(mm)
80
Overall dimension(mm)
780×500×1280
Weight(kg)
200

         NOTE:
   1.We will reserve the right to modify any technical data ofthe machine.
   2.It is possible to make the machine according to customer's demands.
