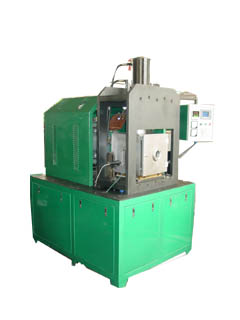

SMVB VACUUM SINTERING MACHINE

The SMVB Vacuum Sintering Machine is designed for sintering the diamond saw blade, the diamond grinding wheel and other segment of diamond tools.

  • Intelligent PID temperature adjustor, with high precision.
  • Non-contact infrared pyrometer with quick response, laser aiming at the goal.
  • Automatically adjusting temperature, pressure and sintering time and Permitting to adjust them manually.
  • Controlling the press force and the temperature in the closed loop way, increasing the press force and temperature according to the slope.
  • Permitting applying gas N2 in sintering process.
  • Controlling and displaying the size of segment.(Option)
  • Computer with storing possibility of 32/128 programs, including 15 steps in one program.
  • Optional thermocouple
SMVB60 VACUUM SINTERING MACHINE TECHNICAL DATA
Model
SMVB60
Power supply
220/380V,50/60Hz monophase
Heating power (kw)
60
Rated current(A)
158
Compression force range(kN)
15~260
Temperature range(℃)
400~1200
Sintering area(cm²)
95cm²,>1000℃
Storing program
32/120
Process curve(seg)
15
Max. Vacuum degree(mmHg)
70
Overall dimension (mm)
1600×1200×2180
Weight(kg)
1600
1650

         NOTE:
   1.We will reserve the right to modify any technical data ofthe machine.
   2.It is possible to make the machine according to customer's demands.
