DOUBLE HEARTS HOT PRESS FURNACE

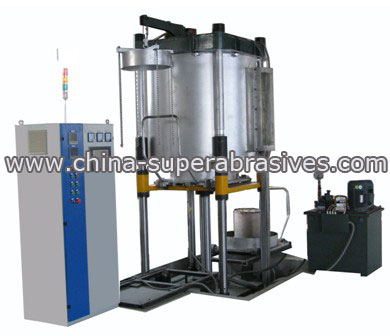

double body hot press furnace


HOT PRESS FURNACE TECHNICAL DATA

Nominal pressure(KN)
400
Rated oil pressure(Mpa)
20
Working piston
Φ160
Pillar diameter
Φ80
Piston stroke(mm)
820
Material Filling height(mm)
380
Press rammer area
Φ400
Power
3 phase AC380V, 50HZ
Power capacity(KVA)
40
Hydraulic station motor power(KW)
1.5
Heating Power(KW) 3 phase star connection
37
Heating voltage 3 phase adjusting independently
220V
MAX sintering temperature
950℃
Temperature measurement
Thermal couples with intelligent temperature controller three sections temperature measuring
Termperature measuring precision
+/- 2 ℃
Protect gas
Nitrogen or Hydrogen
Overall dimension
Main body: L3500mm*W1500mm*H3450mm
Electric cabinet: 700mm*550mm*1800mm
Hydraulic station: 1070mm*870mm*1350mm
COLD PRESS FURNACE TECHNICAL DATA
Nominal pressure(KN)
400
Rated oil pressure(Mpa)
20
Working piston
Φ160
Pillar diameter
Φ68
Piston stroke(mm)
700
Material Filling height(mm)
380
Press rammer area
Φ400
Overall dimension
Main body: L1900mm*W1500mm*H3100mm
Main body weight
3T

         NOTE:
   1.We will reserve the right to modify any technical data of the machine.
   2.It is possible to make the machine according to customer's demands.
