PDC cutters /Polycrystalline diamond compact is consist of PDC/PCD polycrystalline diamond layer sintered with tungsten carbide substrate under ultra-high temperature and pressure,the PDC cutter like 1308,1313 etc, PDC cutters are widely used in petroleum/oil field PDC bit,geological PDC exploration bits, gas exploration bits,PCD/PDC coal mining drill bits,oilfield drilling bits ,currently, we developed new type of PDC cutters,the length of the cutter is 32mm, with a round radius of the tungsten carbide substrate of the PDC cutter,pdc cutters brassed on studs

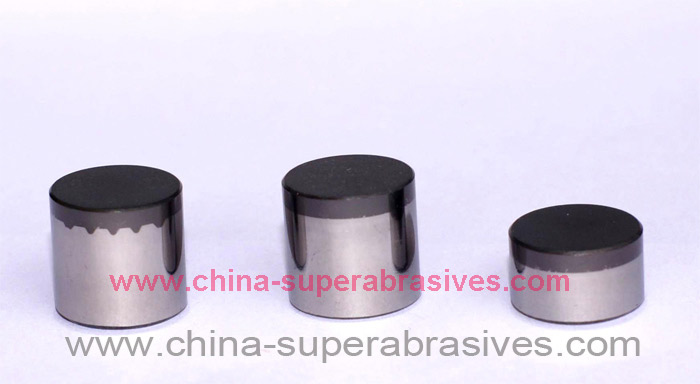

PDC cutter of special shape

Polycrystalline Diamond Compact ball teeth

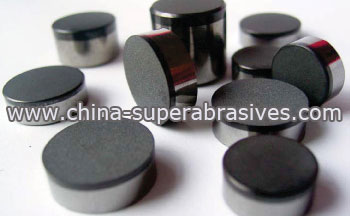

PDC cutters/Polycrystalline Diamond Compact

PDC cutter/Polycrystalline Diamond Compact-T32mm

laser cutting service

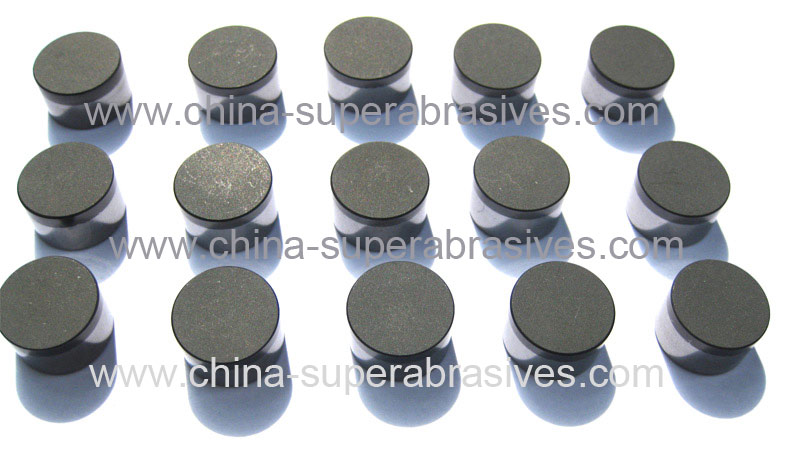

PDC cutters polycrystalline Diamond Compact

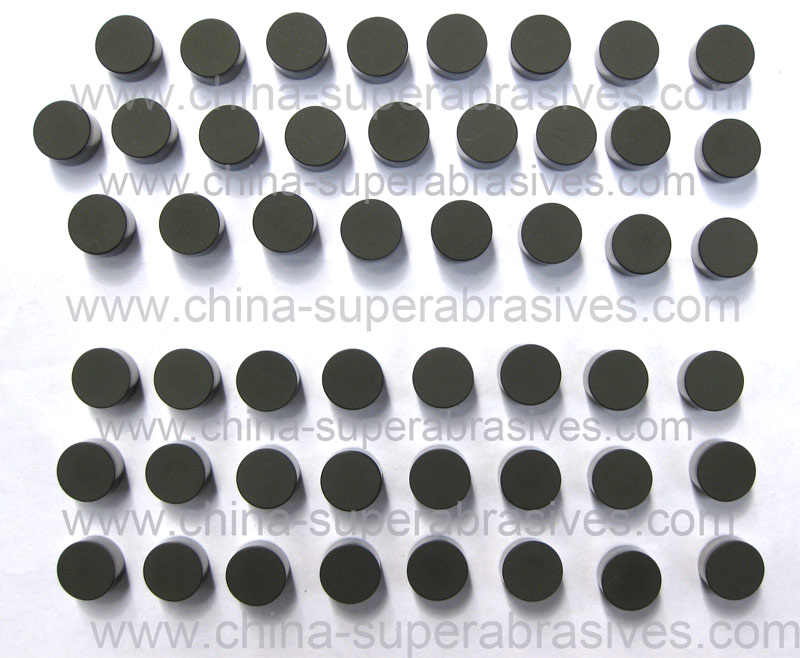

PDC cutters/PCD cutters/Polycrystalline diamond compact for oil field drilling

This series of PDC cutter is high performance PDC cutters (PCD inserts) designed for PDC oilfield drilling bits . The performance index and stability of this cutter is better than that of normal production available in the market, after all kinds of strictly workshop tests and oil field drilling tests. Now the PDC cutters are test well in oil field drilling bits among foreign countries and areas.

The PDC cutter features longer life - Employing new sinter technics firms the bonding of diamond particles. The abrasion resistance has a vast increase, with 2 mm of diamond layer,this assure the diamond compact cutter has a longer life .
Higher impact resistance - The beveled interface of diamond layer and tungsten carbide, with radially shallow slots on it, reduces residual stress of PDC diamond compact cutter, and increase impact resistance.
Thermal stability - The resist temperature of NQX series reaches 700℃ , which makes reliable quality and better performance when the PDC used in the drill bits..

Available sizes of the NQX series PDC cutters-oil wel /gas explorationl drilling bits

NQX Series	Diameter	Height	Diamond Thickness	Diamond Chamfer	Carbide Chamfer
NQX 1308DT	13.44 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm × 45°
NQX 1313DT	13.44 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm × 45°
NQX 1608DT	16.00 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm×45°
NQX 1613DT	16.00 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm×45°
NQX 1908DT	19.05 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm×45°
NQX 1913DT	19.05 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm×45°
NQX 1916DT	19.05 mm	16.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm×45°

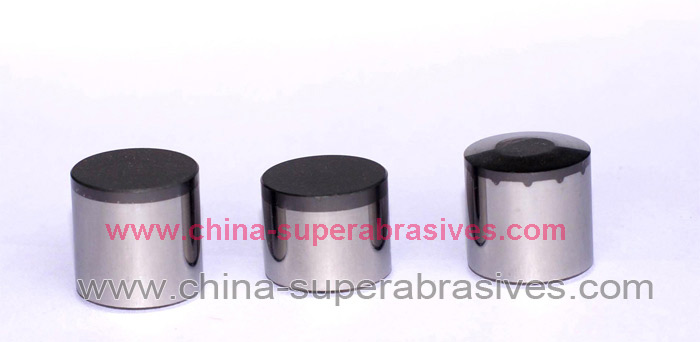

PDC cutters/PCD cutters/Polycrystalline diamond compact for oilfield drilling use

This series PDC cutter is our newest products. Based on adoption of a series of new technology and high quality raw materials, impact resistance and thermal stability of NPF Series improve a lot, and rate of penetration increases while drilling hard rock. NPF Series PDC have achieved outstanding drilling performance and is highly estimated by customers.

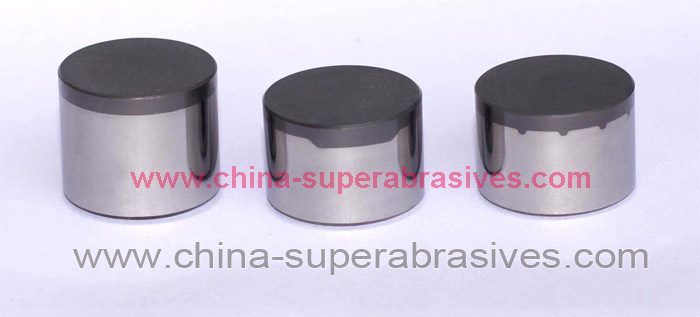

PDC (polycrystalline diamond compact) cutters for oil well /field drilling bits

Higher grade and purer diamond powder for the PDC cutter, in which impurity content decreases vastly, is chosen as raw material to increase bonding strength among diamond.
Grit mixture ratio of diamond powder and sintering technics are improved which increase rate of penetration while drilling in hard rock.
Shallow slots in length and breadth distribute homogeneously on the top of tungsten carbide substrate. This kind of interface improves stress distribution and raises impact resistance and reliability.
Thermal stability reaches 750℃.
Improved structure of sintering cavity makes that temperature and press distribute homogeneously during the sintering process, and assures stable performance of PDC cutters.

Available sizes of the NPF series PDC (polycrystalline diamond compact) cutters

NPF series	Diameter	Height	Diamond Thickness	Diamond Chamfer	Carbide Chamfer
NPF1308DT	13.44 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1313DT	13.44 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1608DT	16.00 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1613DT	16.00 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1908DT	19.05 mm	8.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1913DT	19.05 mm	13.20 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°
NPF1916DT	19.05 mm	16.00 mm	2.0 ± 0.2 mm	0.25 mm×45°	0.50 mm ×45°

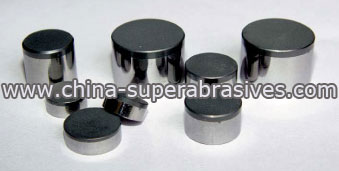

PDC cutters/PCD cutters/>Polycrystalline diamond compact for Coal mining

This kind of PDC cutter is designed for shallow stratum drilling specially, which is economical and drable. Non-planar interface reduces residual stress and diamond layer with thickness over 1 mm increases abrasion resistance of PDC cutter. Since it was put in the market, this kind of PDC cutter has been widely recognized by customers because of reliable quality and cost performance.

PDC cutters (polycrystalline diamond compact) for coal mining use

This kind of PDC cutter is specially designed for coal mining, which is mainly used to make anchor-shank drill bits. It is economical and durable, having high rate of penetration and great efficiency.

PDC cutters for coal mining drilling bits

Available sizes of the NQ series PDC cutters

NQSeries	Diameter	Height	Diamond Thickness
NQ0804	8.20 mm	4.50 mm	1.0±0.1 mm
NQ0808	8.20 mm	8.00 mm	1.0±0.1 mm
NQ1004	10.00 mm	4.50 mm	1.0±0.1 mm
NQ1304	13.30 mm	4.50 mm	1.0±0.1 mm

PDC cutters for coal mining use

This kind of PDC cutter is designed for shallow stratum drilling. Compared with NQ series, the abrasion resistance has an increase of 30%. At the same time, the interface of shallow slots, which are symmetrical and radial, improves distribution of stress and increases reliability and life of PDC cutter.

PDC cutter for coal mining drilling bits

Available sizes of the NQP series PDC (polycrystalline diamond compact)

NQP Series	Diameter	Height	Diamond Thickness
NQP1303	13.30 mm	3.53 mm	1.2±0.1mm
NQP1304	13.30 mm	4.50 mm	1.2±0.1mm
NQP1308	13.44 mm	8.00 mm	1.2±0.1mm

The following are some of our PCD/PDC drills info with pictures we supplying:

We manufacture PCD drill bits (PDC core drill bit),PDC (Polycrystalline Diamond compact) drilling bit is a new product after the hot-pressed and electroplated drill bit in recent years. With special high-frequency welding tenhniques.PDC cutters of high wear resistant is welded to the drill bit body as cutting edges.PDC bit is mainly used for geological prospecting,oilfield drilling,coal ecploration,water conservancy and power engineering fields,etc.
