Diamond Core Bit Reaming Shell,Reamer shells
Reaming shell is set with natural or synthetic diamond abrasives and it is used to couple the diamond drill bit with the core barrel, main function of the reaming shell is maintaining borehole gage, improving drill string stability and protecting lower drill string from excessive wear. Helical type reaming shell provides a good passage for drilling fluids, as the matrix is wearproof, its service life is long. We manufacture reaming shells, different patterns of PCD reamer shell,surface set reamer shell,tungsten carbide reamer shell,electroplated reaming shell.

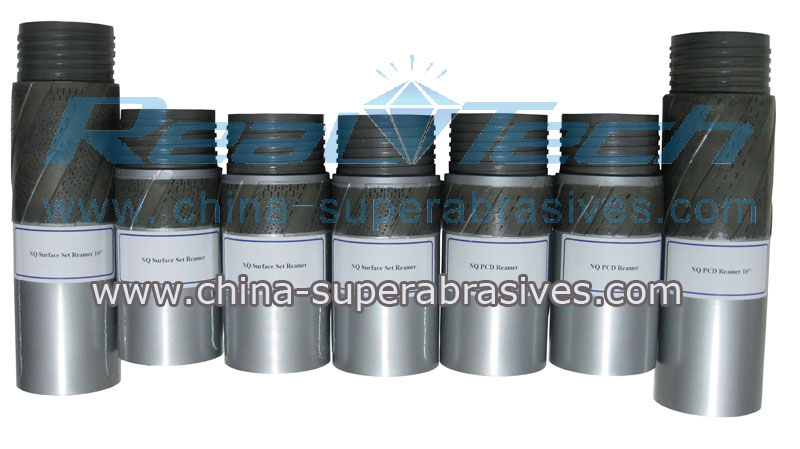

reaming shells
surface set reaming shells, PCD reamer shells
NQ surface set reaming shell
NQ surface set reaming shell

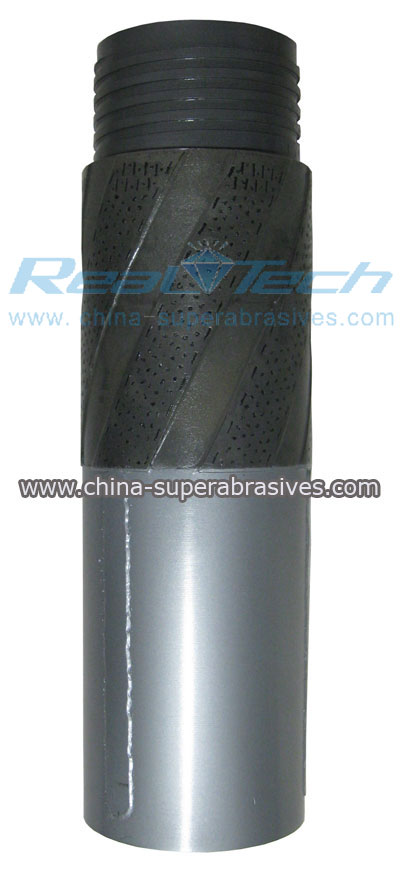

NQ surface set reaming shell 10'
NQ surface set reaming shell 10'

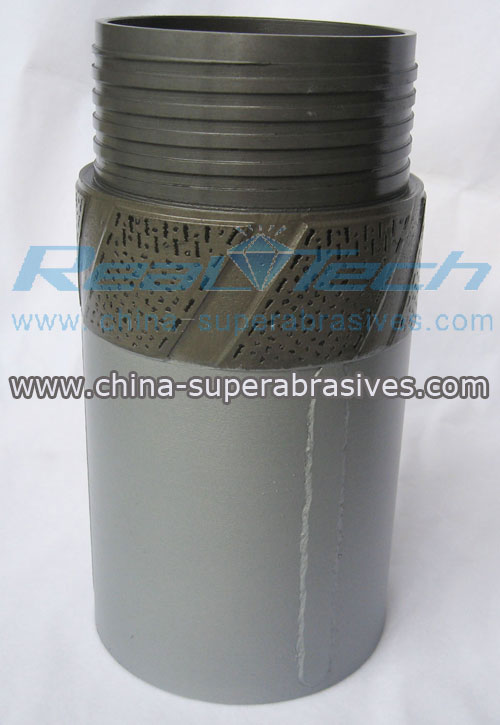

HQ reaming shell
HQ surface set reaming shell

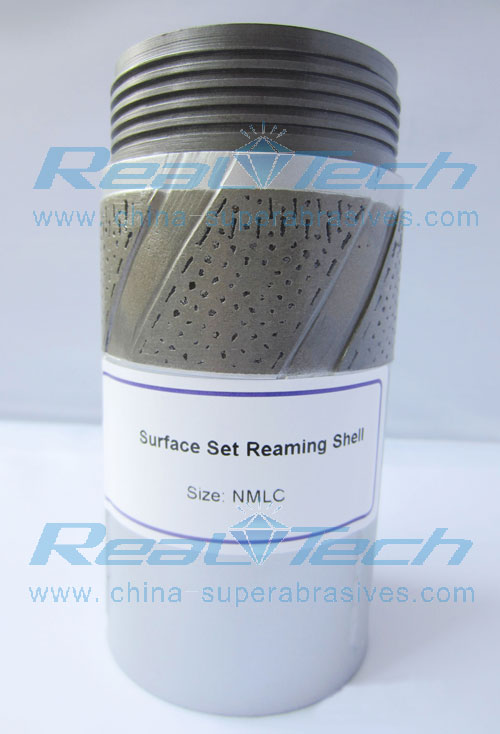

NMLC surface set reaming shell
NMLC surface set reaming shell

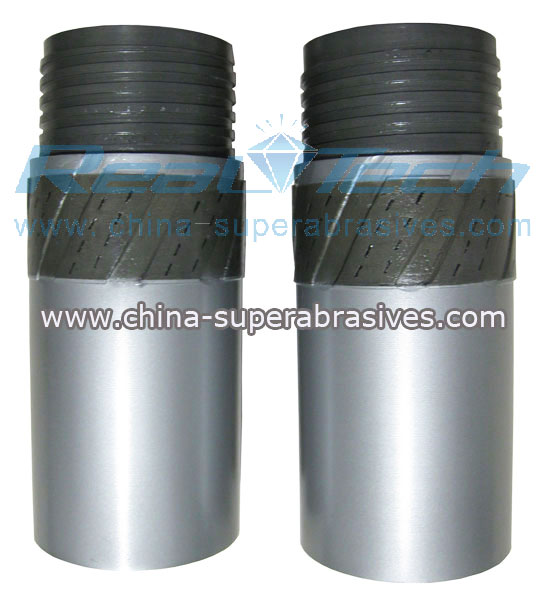

NQ PCD reaming shells
NQ PCD reaming shells

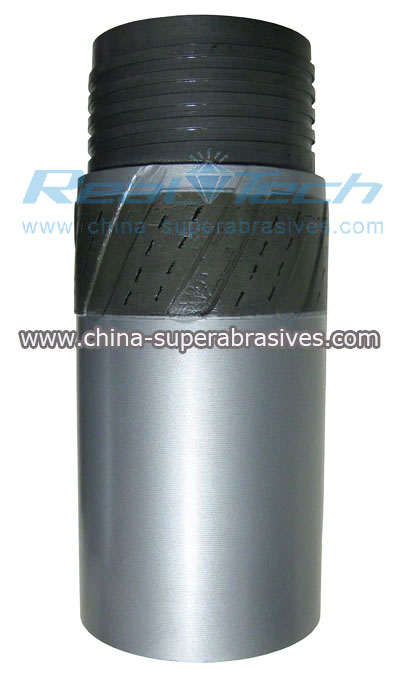

NQ PCD reaming shell
NQ PCD reaming shell

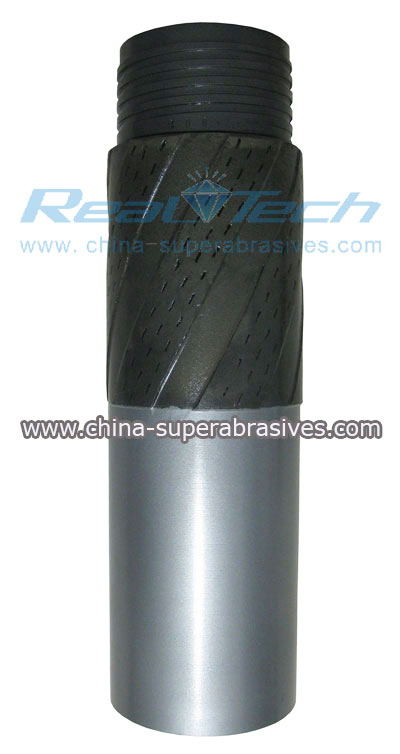

NQ PCD reaming shell 10'
NQ PCD reaming shell 10'

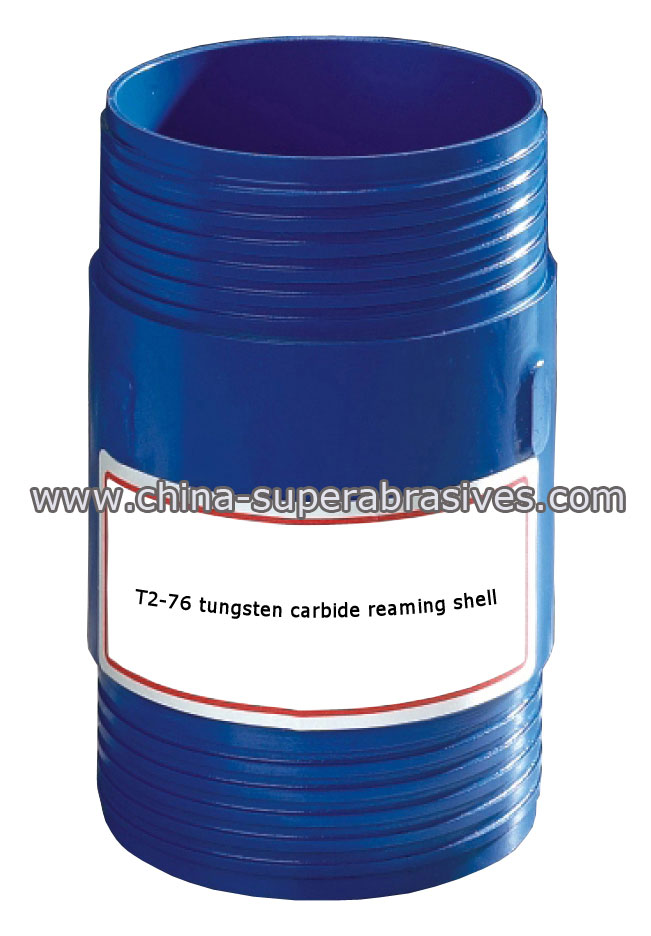

tungsten carbide reaming shell
Tungsten carbide reaming shell

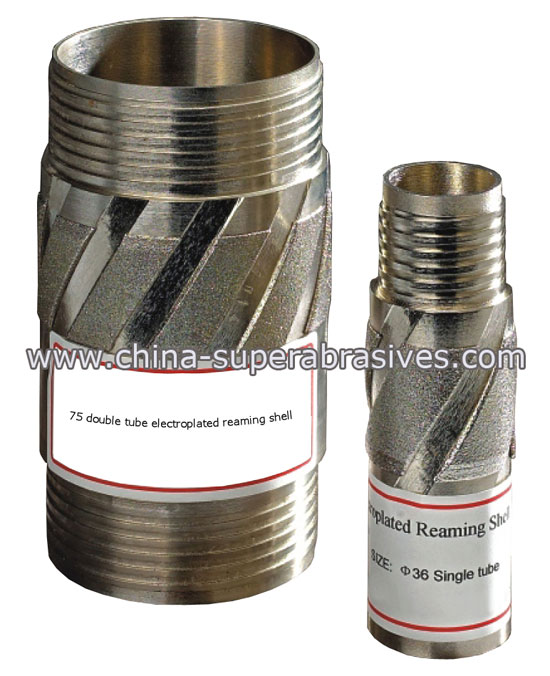

electroplated diamond reaming shells
Electroplated diamond reaming shells


A gauge reaming shell B gauge reaming shell N gauge reaming shell
SIZE Outside diameter SIZE Outside diameter SIZE Outside diameter
inch mm inch mm inch mm
AQ 1.895~1.885 48.13~47.88 BQ 2.365~2.355 60.07~59.82 NQ 2.985~2.975 75.82~75.57
AWG / AX 1.895~1.885 48.13~47.88 BQ-2.400 2.405~2.395 61.09~60.83 NQ-3.032 3.037~3.027 77.14~76.89
AWM 1.895~1.885 48.13~47.88 BQ3 2.365~2.355 60.07~59.82 NQ2 2.985~2.975 75.82~75.57
AWT 1.895~1.885 48.13~47.88 BWG / BX 2.365~2.355 60.07~59.82 NQ3 / NQTT 2.985~2.975 75.82~75.57
LTK48 1.895~1.885 48.13~47.88 BWM 2.365~2.355 60.07~59.82 NMLC 2.985~2.975 75.82~75.57
      BWT 2.365~2.355 60.07~59.82 NWG / NX 2.985~2.975 75.82~75.57
      LTK60 2.365~2.355 60.07~59.82 NWM 2.985~2.975 75.82~75.57
      TBW 2.365~2.355 60.07~59.82 NWT 2.985~2.975 75.82~75.57
            TNW 2.985~2.975 75.82~75.57
H gauge reaming shell P gauge reaming shell E gauge reaming shell
SIZE Outside diameter SIZE Outside diameter SIZE Outside diameter
inch mm inch mm inch mm
HQ 3.790~3.775 96.27~95.89 PQ 4.835~4.820 122.81~122.43 EWG 1.490~1.480 37.85~37.59
HQ-3.380 3.840~3.825 97.54~97.16 PQ3 4.835~4.820 122.81~122.43 EWM 1.490~1.480 37.85~37.59
HMLC 3.886~3.850 98.20~97.80 PWF 4.755~4.740 120.78~120.40 EWT / EXT 1.490~1.480 37.85~37.59
HWF 3.912~3.902 99.36~99.11       IEW 1.490~1.480 37.85~37.59
HWG / HX 3.912~3.902 99.36~99.11       IEWS 1.490~1.480 37.85~37.59
HWT 3.912~3.902 99.36~99.11       TEW 1.490~1.480 37.85~37.59
            EW / C 1.895~1.885 48.13~47.88
            EWK / D 1.490~1.480 37.85~37.59
S gauge reaming shell U gauge reaming shell Z gauge reaming shell
SIZE Outside diameter SIZE Outside diameter SIZE Outside diameter
inch mm inch mm inch mm
SWF 5.755~5.740 146.18~145.80 UWF 6.880~6.860 174.75~174.24 ZWF 7.880~7.860 200.15~199.64
T,TT,T2,TB series metric reaming shell T6 series metric reaming shell T6S series metric reaming shell
SIZE Outside diameter SIZE Outside diameter SIZE Outside diameter
inch mm inch mm inch mm
T36 1.433~1.425 36.40~36.20 T6-76 3.012~3.000 76.50~76.20 T6S-76 3.012~3.000 76.50~76.20
TT46 1.827~1.819 46.40~46.20 T6-86 3.406~3.394 86.50~86.20 T6S-86 3.406~3.394 86.50~86.20
T2-46 1.827~1.819 46.40~46.20 T6-101 3.996~3.984 101.50~101.20 T6S-116 4.590~4.575 116.60~116.20
TB56 2.220~2.212 56.40~56.20 T6-116 4.590~4.575 116.60~116.20 T6S-131 5.180~5.165 131.57~131.19
TT56 2.220~2.212 56.40~56.20 T6-131 5.180~5.165 131.57~131.19 T6S-146 5.772~5.757 146.60~146.22
T2-56 2.220~2.212 56.40~56.20 T6-146 5.772~5.757 146.60~146.22
T2-66 2.614~2.604 66.40~66.14
T2-76 3.012~3.000 76.50~76.20
T2-86 3.406~3.394 86.50~86.20
T2-101 3.996~3.984 101.50~101.20
B series metric reaming shell (ISO3552-1) R gauge reaming shell
SIZE Outside diameter SIZE Outside diameter
inch mm inch mm
B36 1.433~1.425 36.40~36.20 RWT / D 1.180~1.170 29.97~29.72
B46 1.827~1.819 46.40~46.20
B56 2.220~2.212 56.40~56.20
B66 2.614~2.604 66.40~66.14
B76 3.012~3.000 76.50~76.20
B86 3.406~3.394 86.50~86.20
B101 3.996~3.984 101.50~101.20
B116 4.590~4.575 116.60~116.20
B131 5.180~5.165 131.57~131.19
B146 5.775~5.757 146.60~146.22
Reaming shells
Reaming Shells include Surface Set Diamond Reaming Shell,Tungsten Carbide Reaming Shell,PCD&Electroplated Diamond Reaming Shell
Reaming Shells in size of AQ,AWG,AWM,AWT,LTK48; BQ,BQ-2.400,BQ3,BWG,BWM,BWT,LTK60,TBW; NQ,NQ-3.032,NQ2,NQ3,NQTT,
NMLC,NWG,NWM,NWT,TNW; HQ,HQ-3.3830,NMLC,HWF,HWG,HX,HWT; PQ,PQ3,PWF; SWF,UWF,ZWF; T36,TT46,T2-46,TB56,T2-56,T2-66,
T2-76,T2-86,T2-101; T6-76,T6-86,T6-101,T6S-116,T6S-131,T6S-146; B36,B46,B56,B66,B76,B86,B101,B116,B131,B146; RWT,EWG,EWM,IEW,
IEWS,TEW,EW,EWK
Diamond reaming shell is used together with diamond drill bits, maintaining the hole size and improving drilling stability, we can provide electroplated
diamond reaming shell and polycrystalline reaming shell.
We manufacture and export core barrels,drill rigs,overshots,impregnated diamond core drill bits,reaming shells,diamond casing shoe bits,PDC core bits,tunsten carbide core bits,electroplated core bits. With special high-frequency welding tenhniques,PDC of high wear resistant is welded to the body as cutting edges.PDC bit is mainly used for geological prospecting,coal ecploration,water conservancy and power engineering,etc

(1) Impregnated diamond core drill bit,surface set diamond core drill bit,PDC core bit,tungsten carbide core bit,geocube core bit,electroplated core bit
(2) Surface set diamond reaming shell,PCD reaming shell,tungsten carbide reaming shell,electroplated reaming shell
(3) Impregnated diamond casing shoe bit and casing bit,surface set diamond casing shoe bits,tungsten carbide casing shoe bit
(4) core barrels of patterns AQ,BQ,NQ,HQ,PQ,HWF,PWF,SWF,UWF,412F,T2-56,T2-66,T2-86,T2-101,T6-131. And single tube core barrel,double tube core barrel,wireline core barrel,Jet-type reverse circulation core barrel
(5) NQ overshot,HQ overshot,wireline overshots
