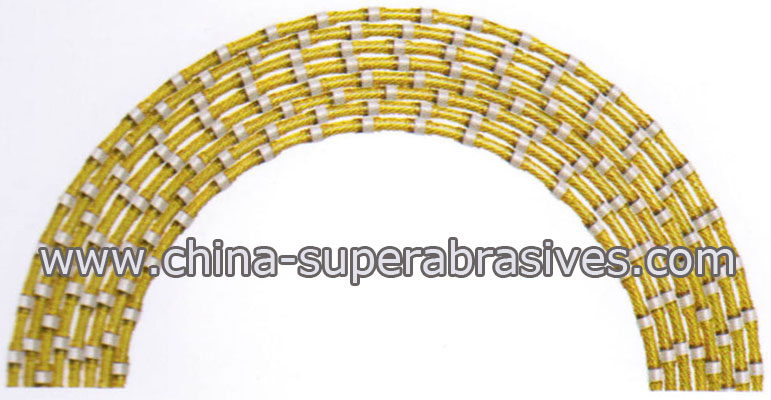

diamond wire saw for marble profiling
We manufacture diamond wire saws for marble profiling. such as diamond wire saws for low rigidity marble profiling,Mid-rigidity marble profiling,hard rigidity marble profiling,marble quarries,marble block squaring. our diamond wire saws are widely used to process speical shape marble surfaces and for multi wire machines to cut marble slabs. Also we supply diamond wire saws for granite block squaring,granite profiling,granite quarries,marble block squaring,marble profiling,marble quarries,multi-wire machines.
diamond wire saw for marble profiling
diamond wire saw for marble profiling
diamond wire saw for marble profiling
diamond wire saw for marble profiling

Specification Beads/m Reinforcement
mm   P
Φ 7.3 37 injection plastic
Φ 8.0 37 injection plastic
Φ 8.8 33 injection plastic

Specification and performance parameters of diamond wire saws
Cutting material Line speed Cutting speed Wire life
  m/s /h

/m

Low rigidity marble 30-35 100-150 35-45
Mid rigidity marble 28-32 80-120 30-40
Hard marble 26-30 70-100 25-30
Specification and technical parameters of diamond beads
Specification (mm) Outer diameter (mm) Height of work layer (mm) Length (mm) manufacture tech
Φ 7.3 Φ 7.3 7.0 11 sintered
Φ 8.0 Φ 8.0 6.0 9.5 sintered
Φ 8.8 Φ 8.8 6.0 9.5 sintered
Diamond wire saw
Diamond wire saws are used for:
reinforced concrete, granite block squaring, granite profiling, granite quarries, marble block squaring, marble profiling
marble quarries, multi-wire machines, sandstone slate quarries
