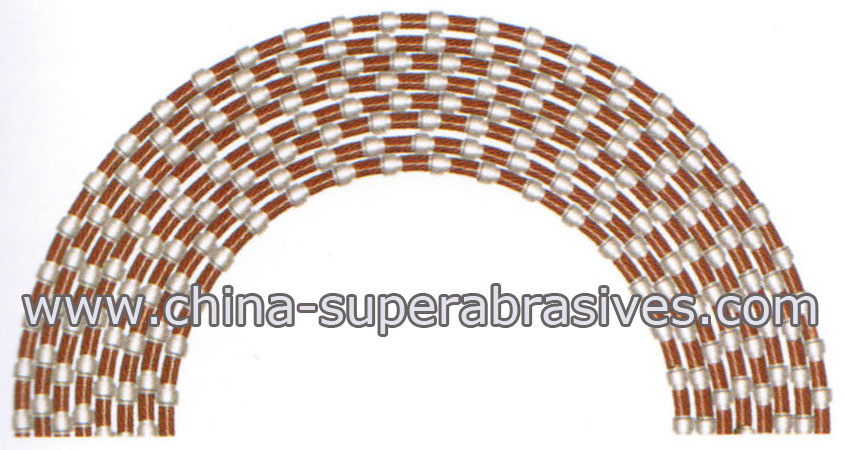

diamond wire saw for marble block squaring
We manufacture diamond wire saws for marble block squaring. such as diamond wire saws for low rigidity marble block squaring,Mid-rigidity marble block squaring,hard rigidity marble block squaring,marble profiling,marble quarries. our diamond wire saws are widely used to dissect marble and get the standard block squaring. Also we supply diamond wire saws for granite block squaring,granite profiling,granite quarries,marble block squaring,marble profiling,marble quarries,multi-wire machines.
diamond wire saw for marble block squaring
diamond wire saw for marble block squaring
diamond wire saw for marble block squaring
diamond wire saw for marble block squaring

Specification Beads/m Reinforcement
mm   P
Φ 10.5 33 injection plastic
Φ 10.5 37 injection plastic

Specification and performance parameters of diamond wire saws
Cutting material Line speed Cutting speed Wire life
  m/s /h

/m

Low rigidity marble 30-35 90-130 40-60
Mid rigidity marble 28-32 70-100 25-40
Hard marble 26-30 60-80 20-30
Specification and technical parameters of diamond beads
Specification (mm) Outer diameter (mm) Height of work layer (mm) Length (mm) manufacture tech
Φ 10.5 Φ 10.5 6.4 10 sintered
Diamond wire saw
Diamond wire saws are used for:
reinforced concrete, granite block squaring, granite profiling, granite quarries, marble block squaring, marble profiling
marble quarries, multi-wire machines, sandstone slate quarries
