High performance diamond wire sawing machine
We manufacture diamond wire sawing machines such as high-performance diamond wire sawing machine,compact diamond wire sawing machine,Mini diamond wire sawing machine,diamond wire sawing machine for profiling,diamond wire sawing machine for squaring.

HIGH PERFORMANCE DIAMOND WIRE SAWING MACHINES FEATURES:
1) Designed and manufactured elaborately machine with the most advanced technology. It is applicable for quarrying all kinds of granite and marble.
2) Easily regulate the position and angle of driving flywheel by motors.
3) Apply imported vector inverter with invariable torque. Feeding speed can be regulated automatically and smoothly as cutting force changes.
4) Display the real-time parameters such as the main motor,s current, flywheel′s speed, etc.
5) The machine can be operated manually or automatically.

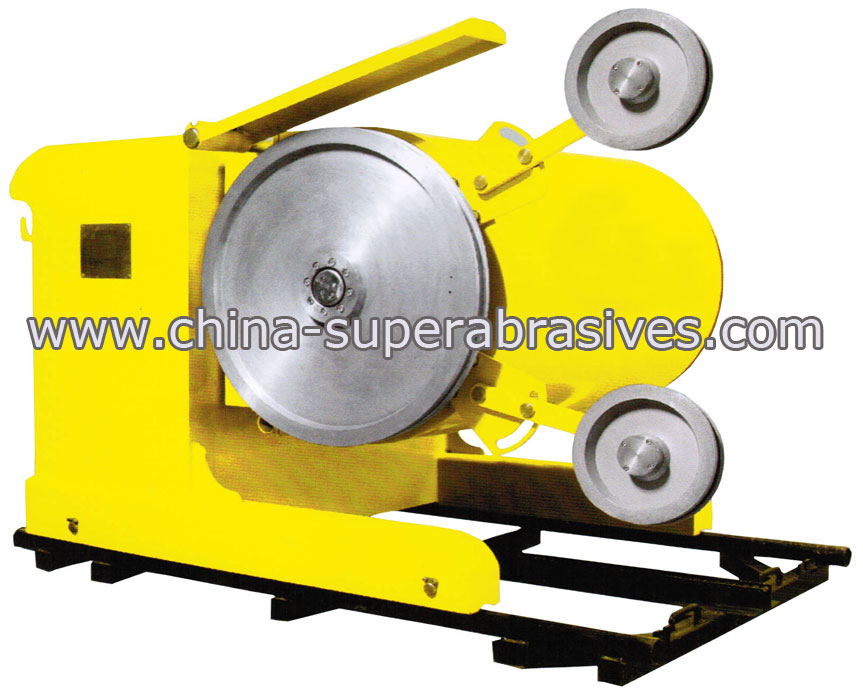

High-performance diamond wire sawing machine

Technical parameters of high performance diamond wire sawing machine
Power supply 380V/50Hz
Driving power (kw) 30 37 45 55 75
Flywheels diameter (mm) 800 800 800 1000 1000
Wire saws speed (m/s) 0-40 0-40 0-40 0-40 0-40
Feeding power (kw) 0.75 0.75 0.75 1.5 1.5
Feeding speed (m/h) 0-30
Adjustment distance (mm) 450 450 450 500 500
Rotation angle 0-360°
Max wire length (m) 60 80 100 120 150
Net weight (kg) 1600 1700 2100 2400 3000
Diamond wire sawing machine
High-performance diamond wire sawing machine, Compact diamond wire sawing machine, Mini diamond wire sawing machine
diamond wire sawing machine for profiling and squaring
