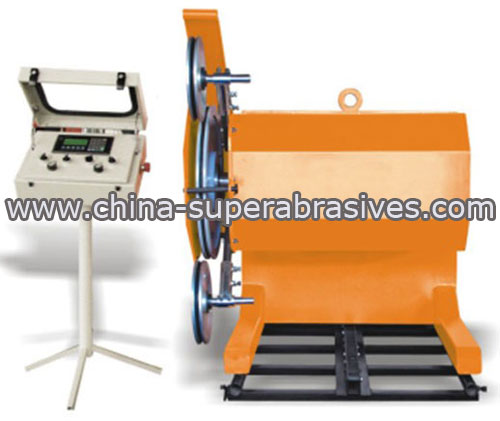

diamond wire sawing machine 6
We manufacture diamond wire sawing machines such as high-performance diamond wire sawing machine,compact diamond wire sawing machine,Mini diamond wire sawing machine,diamond wire sawing machine for profiling,diamond wire sawing machine for squaring.

1) suitable for unstable electric power.
2) specially for very dry,high temperature, much dust environment.
3) complete protection offered when quarrying mine block,with CE certificate.
4) the cutting process is auto controlled exactly as per the setting cut parameters.
5) the tension of wire saw beads and cutting electric current are auto controlled by intelligent controller.
Machine hasn't request for the phase position of electric power, no need of recognition or changing to phase.
7) digital display for the parameters of cutting electric current,wire saws speed,running speed;and storage the parameters of cutting time.


Technical parameters of diamond wire sawing machine
Driving power (kw) 37 (50HP) 55 (75HP)
Driving head rotation angle 360° 360°
Driving head cutting space (m) 1.8 2
Driving head shift motion (mm) 480 660
Running speed (m/h) 0~90 0~90
Running guide rail (m) 2 meters X 3 3 meters X 3
Machine measurement (mm) L 1865mm * W 1267mm * H 1430mm L 2095mm * W 1483mm * H 1485mm
Net weight (kg) 1900 2400
