diamond wire sawing machine 3
We manufacture diamond wire sawing machines such as high-performance diamond wire sawing machine,compact diamond wire sawing machine,Mini diamond wire sawing machine,diamond wire sawing machine for profiling,diamond wire sawing machine for squaring.

DIAMOND WIRE SAWING MACHINES FEATURES:
1) complete protection offered when quarrying mine block,with CE certificate.
2) the cutting process is auto controlled exactly as per the setting cut parameters.
3) shifting and rotation of driving head are driven by motor,and set position limitation protection.
4) Machine hasn't request for the phase position of electric power, no need of recognition or changing to phase.
5) the tension of wire saw beads and cutting electric current are auto controlled by PLC and bidirectional closed loop of transducer.
6) digital display for the parameters of cutting electric current,wire saws speed,running speed;and storage the parameters of cutting time.

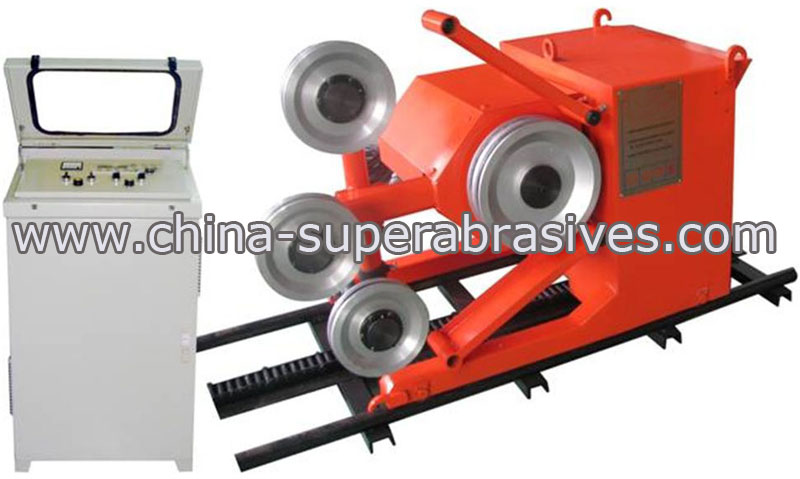

  Diamond wire sawing machine

Technical parameters of diamond wire sawing machine
Driving power (kw) 11 15
Driving head rotation angle 360° 360°
Wire saws speed (m/s) 0-32 0-40
Running speed (m/h) 0~60 0~60
Running guide rail (m) 2 meters X 3 2 meters X 3
Working temperature (℃) -15℃~40℃ (humidity<95%) -15℃~40℃ (humidity<95%)
Machine measurement (mm) L 1200mm * W 570mm * H 730mm L 1200mm * W 570mm * H 730mm
Main process equipment weight (kg) 420 464
Operation device weight (kg) 83 83
Diamond wire sawing machine
High-performance diamond wire sawing machine, Compact diamond wire sawing machine, Mini diamond wire sawing machine
diamond wire sawing machine for profiling and squaring
