Compact diamond wire sawing machine
We manufacture diamond wire sawing machines such as high-performance diamond wire sawing machine,compact diamond wire sawing machine,Mini diamond wire sawing machine,diamond wire sawing machine for profiling,diamond wire sawing machine for squaring.

COMPACT DIAMOND WIRE SAWING MACHINES FEATURES:
1) The machine is compact and light but manufactured elaborately. It is applicable for quarrying all kinds of granite and marble.
2) Easily regulate the position and angle of driving flywheel by hand.
3) Special control system is applied to keep the wire saw,s tension constant. Feeding speed can be regulated automatically and smoothly as cutting force changes.
4) Display the real-time parameters such as the main motor,s current, flywheel,s speed, etc.
5) The machine can be operated manually or automatically.

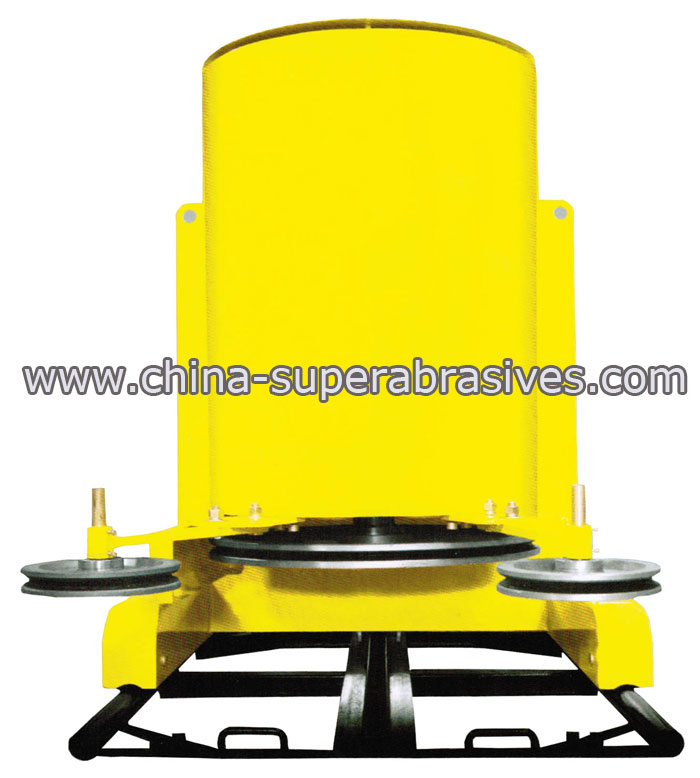

  Compact diamond wire sawing machine

Technical parameters of compact diamond wire sawing machine
Power supply 380V/50Hz
Driving power (kw) 15 22 30 37
Flywheels diameter (mm) 600 600 800 1000
Wire saws speed (m/s) 0-38 0-38 0-40 0-40
Feeding power (kw) 0.37 0.37 0.75 1.5
Feeding speed (m/h) 0-30
Adjustment distance (mm) 220 220 260 260
Rotation angle 0-360°
Max wire length (m) 20 40 60 80
Net weight (kg) 900 1000 1200 1400
