Wet Core Bits/Wet Core Drills
Laser welded wet core bits,used for drilling various materials ,they can used from heavily reinforced concrete drilling to asphalt drilling applications.

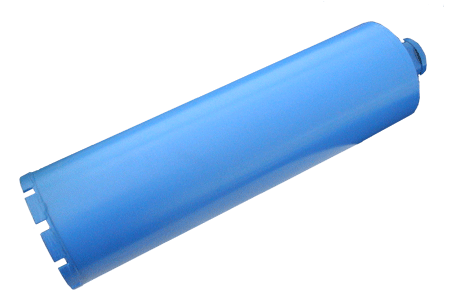

laser welded wet core bit





         Bit Diameter Bit Segment Width Bit Segment Height
1''/25mm 2.0mm 8mm
1-1/8'' /28mm 2.0mm 8mm
1-1/4'' /32mm 2.0mm 8mm
1-3/8'' /36mm 3.0mm 8mm
1-1/2'' /38mm 3.0mm 8mm
1-3/4'' /44mm 3.0mm 8mm
2'' /51mm 3.0mm 8mm
3'' /76mm 3.5mm 8mm
3-1/2'' /89mm 3.5mm 8mm
4'' /102mm 3.5mm 8/10mm
4-1/2'' /115mm 3.5mm 8/10mm
5'' /127mm 3.5mm 8/10mm
6'' /152mm 4.0mm 8/10mm
7'' /180mm 4.0mm 8/10mm
8'' /202mm 4.0mm 8/10mm
9'' /230mm 4.0mm 8/10mm
10'' /250mm 5.0mm 8/10mm
12'' /300mm 5.0mm 8/10mm
Granite drilling core bits/drilling core drills
Our granite core bit is sintered diamond core bit,this kind of granite drill core bit features very high drill segment,ideal used for drilling granite,mable,ceramic, tile, bluestone and slate .

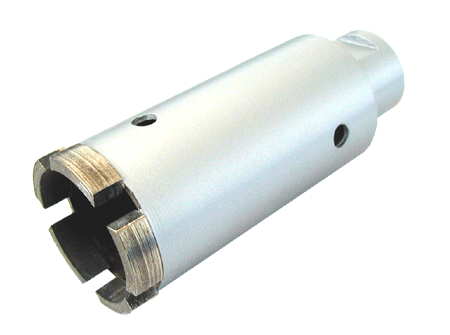

granite core bit
         Bit Diameter Bit Segment Width Bit Segment Height
1''/25mm 2.8mm 12mm
1-1/8'' /28mm 2.8mm 12mm
1-1/4'' /32mm 2.8mm 12mm
1-3/8'' /36mm 2.8mm 12mm
1-1/2'' /38mm 2.8mm 12mm
1-3/4'' /44mm 2.8mm 12mm
2'' /51mm 2.8mm 12mm
Granite drilling core bit
This type diamond granite drilling core bit is sintered core bit,the following drilling core bit also features very high segment,it is ideal for drilling granite stone,mable,ceramic, tile, bluestone and slate applications.

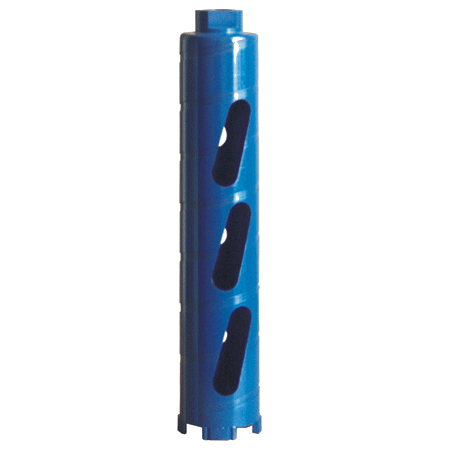

granite core bits
         Bit Diameter Bit Segment Width Bit Segment Height
1''/25mm 2.0mm 8mm
1-1/8'' /28mm 2.0mm 8mm
1-1/4'' /32mm 2.0mm 8mm
1-3/8'' /36mm 3.0mm 8mm
1-1/2'' /38mm 3.0mm 8mm
1-3/4'' /44mm 3.0mm 8mm
2'' /51mm 3.0mm 8mm
3'' /76mm 3.5mm 8mm
3-1/2'' /89mm 3.5mm 8mm
4'' /102mm 3.5mm 8/10mm
4-1/2'' /115mm 3.5mm 8/10mm
5'' /127mm 3.5mm 8/10mm
6'' /152mm 4.0mm 8/10mm
