CBN grinding wheel for camshaft

This type of CBN grinding wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts.The CBN wheel speed is 80m/s-160m/s.It can equip with various high precision CNC cam grinding machines.
We are very experienced camshafts grinding wheel supplier for all types of camshafts ranging from the smallest Motorbike camshafts to the largest truck Diesel engine camshafts.Bearing Journals,Standard cam lobes and reentry concave cam files are applications where our vitrified bond CBN hase proven itself to be a world-class product.

CBN grinding wheel for camshaft

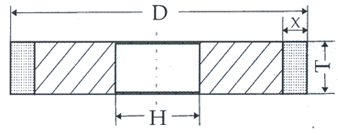

FEPA Code
D
T
H
X
1A1
150
6
32
3、5
1A1
150
8
32
3、5
1A1
150
10
32
3、5
1A1
150
12
32
3、5
1A1
200
10
32
3、5
1A1
200
15
32
3、5
1A1
200
20
32
3、5
1A1
200
25
32
3、5
1A1
250
10
75、152.4
3、5
1A1
250
13
75、152.4
3、5
1A1
250
18
75、152.4
3、5
1A1
250
22
75、152.4
3、5
1A1
300
12
152.4、127
3、5
1A1
300
15
152.4、127
3、5
1A1
300
20
152.4、127
3、5
1A1
300
25
152.4、127
3、5
1A1
300
30
152.4、127
3、5
1A1
350
15
152.4、100、40、25
3、5
1A1
350
18
152.4、100、40、25
3、5
1A1
350
19
152.4、100、40、25
3、5
1A1
350
20
152.4、100、40、25
3、5
1A1
350
30
152.4、100、40、25
3、5
1A1
400
14
100
3、5、8
1A1
400
20
100
3、5、8
1A1
400
22
100
3、5、8
1A1
400
25
100
3、5、8
1A1
450
15
100
3、5、8
1A1
450
25
100
3、5、8
1A1
450
35
100
3、5、8
1A1
450
40
100
3、5、8
According to customer’s requirements.

Order example:

PEPA code
D
T
H
X
Abrasive
Grain size
Bond
Concentration
Grade

Vitrified bond

1A1
150
6
32
3
D
120
V
150
N
