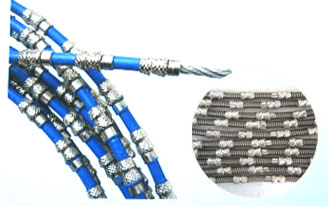

 Brazed Diamond Wire Saw
Brazed diamond wire saw and diamond wire saw beads, the brazed diamond wire saw is mainly used for quarrying,block sawing and construction cutting,etc.With years of research and application of wire saw and the world - advanced technology of diamond brazing,this brazed diamond wire saw features excellent cutting performance,high cutting efficiency and long working life.
Vacuum Brazed Diamond Wire Saw
ITEM NO. Dia . (Beads) Dia. (Steel Wire) Pc /Meter Coating
XLHX 9.8/8.8 9.8 / 8.8 mm 4.9 / 3.8 mm 33 Polyurethane Rubber
XLHT 9.8/8.8 9.8 / 8.8 mm 4.9 / 3.8 mm 33 Spring
YLDX 9.8/8.8 9.8 / 8.8 mm 4.9 / 3.8 mm 33 Polyurethane Rubber
YLDT 9.8/8.8 9.8 / 8.8 mm 4.9 / 3.8 mm 33 Spring
Efficiency For Marble Quarrying 8-20M2/Hour
For Granite Quarrying 4-10M2/Hour
Working Life For Marble Quarrying 50-130M2/M
For Granite Quarrying 10-30M2/M
